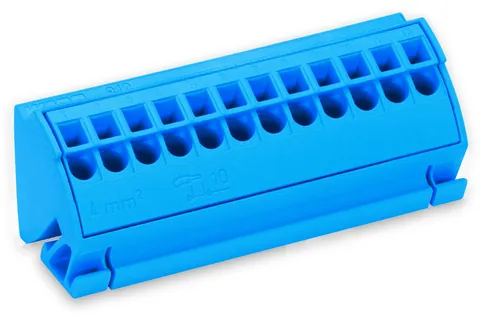

Wago
812-101
1 / 1
- Part Number
- 812-101
- Tariff Code
- 85369010000
- UPC
- 4044918253260
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Busbar terminal
- Class Code : EC000001
- Version : 7
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
Ratings Per Iec/En
- Nominal voltage (III/3)
- 1000 V
- Rated impulse voltage (III/3)
- 6 kV
- Rated current
- 96 A
- Note (rated current)
- Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used.
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
Environmental Requirements
- Continuous operating temperature
- -35 … +85 °C
Physical Data
- Width
- 75 mm / 2.953 inches
- Height
- 30 mm / 1.181 inches
- Depth
- 27.5 mm / 1.083 inches
Material Data
- Note (material data)
- <a href="https://www.wago.com/us/material-specifications" href="_blank">Information on material specifications can be found here</a>
- Color
- Light gray
- Material group
- I
- Insulation material
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.821 MJ
- Weight
- 35.628 g
Specifications
- Product Group Code
- 0012
Commercial Data
- Packaging type
- Box
- Country of origin
- PL
- GTIN
- 4044918253260
- Customs tariff number
- 85369010000
Connection 1
- Connection technology
- Push-in CAGE CLAMP®
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Solid conductor
- 0.5 … 4 mm² / 20 … 12 AWG
- Solid conductor; push-in termination
- 0.5 … 4 mm² / 20 … 12 AWG
- Stranded conductor
- 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor
- 0.5 … 4 mm² / 20 … 12 AWG
- Strip length
- 11 mm / 0.43 inches
- Wiring direction
- Front-entry wiring
