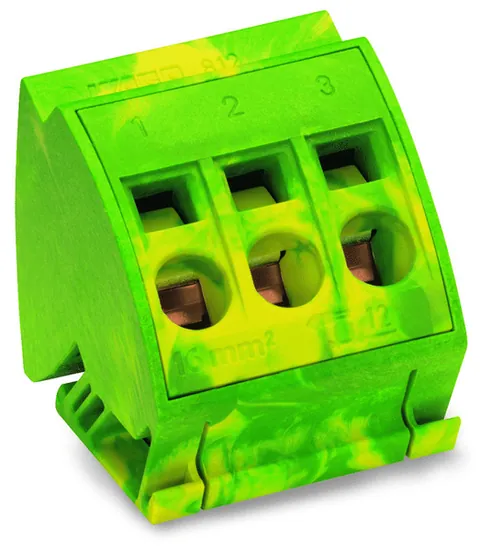

Wago
812-110
1 / 3
- Part Number
- 812-110
- Tariff Code
- 85369010000
- UPC
- 4045454014889
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Busbar terminal
- Class Code : EC000001
- Version : 7
£5.07
net1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 6 pcs.In-StockUpdated at: 22-11-2024
- Estimated Delivery:
- On Request
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environmental Requirements
- Continuous operating temperature
- -35 … +85 °C
Physical Data
- Width
- 38 mm / 1.496 inches
- Height
- 42.5 mm / 1.673 inches
- Depth
- 43.5 mm / 1.713 inches
Material Data
- Note (material data)
- <a href="https://www.wago.com/us/material-specifications" href="_blank">Information on material specifications can be found here</a>
- Color
- Green-yellow
- Material group
- I
- Insulation material
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.849 MJ
- Weight
- 42.670 g
Specifications
- Product Group Code
- 0012
Commercial Data
- Packaging type
- Box
- Country of origin
- PL
- GTIN
- 4045454014889
- Customs tariff number
- 85369010000
Connection 1
- Connection technology
- CAGE CLAMP®
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Solid conductor
- 1.5 … 16 mm² / 14 … 6 AWG
- Fine-stranded conductor
- 1.5 … 16 mm² / 14 … 6 AWG
- Strip length
- 12 mm / 0.47 inches
- Wiring direction
- Front-entry wiring
