Weidmuller 1021730500

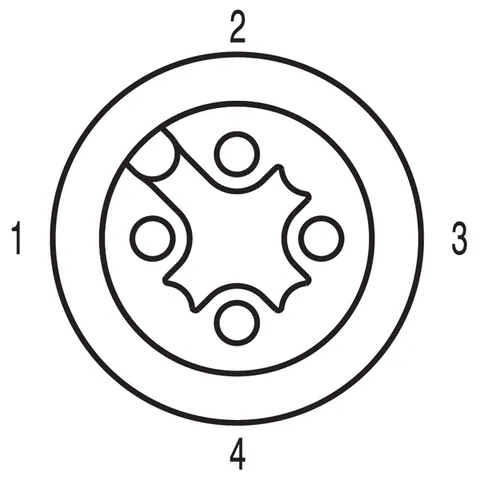

The SAIL-M12GM12G-4-5.0T is designed for sensor and actuator applications, utilizing M12 to M12 connections. This product features a cable length of 5 meters and includes 4 poles. The cable's outer diameter is 4.9 ± 0.2 mm, and it is constructed from PUR, offering flexibility and durability. Additionally, the cable is unshielded and has a color coding of brown, white, blue, and black.

With a rated voltage of 250 V and a current rating of 4 A, this cable is suitable for various applications. Its operational temperature range spans from -25 °C to +80 °C, ensuring reliability in diverse environments. The connector adheres to the IEC 61076-2-101 standard, and when properly installed, it achieves protection degrees of IP65, IP66, IP67, and IP68.

The device supports a minimum bending radius of 4 times the cable diameter when stationary and 7.5 times when in motion, accommodating dynamic applications. It also ensures a high level of performance with a contact surface that is gold-plated to improve connectivity. This model is classified under ETIM 6.0 and conforms to various environmental standards, including REACH and ROHS.
