Weidmuller 1101811001

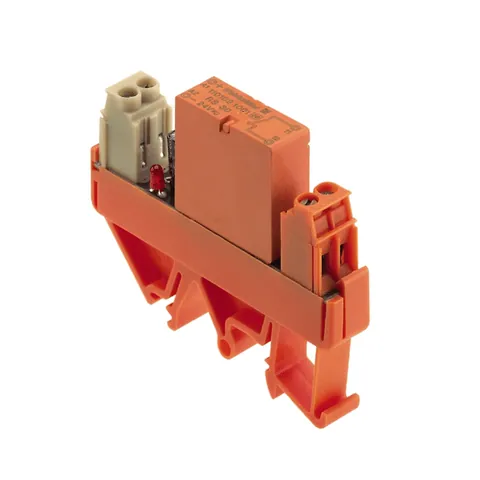

The RS 30 Relay Module operates at a rated control voltage of 48 V DC ±10 % and is designed with a single normally open contact (AgNi 0.15 gold flashed). It supports a continuous current of 6 A and features a screw connection method for wiring. The device has a compact design with dimensions of 11.2 mm in width, 70 mm in height, and 56 mm in depth, weighing 30 g.

This relay module is compliant with CE, EAC, and MARITREG standards, while also adhering to ROHS directives. It can handle a rated switching voltage of up to 250 V AC and has a maximum AC switching capacity of 2000 VA. The electrical service life for the AC coil exceeds 700,000 switching cycles, while the DC coil exceeds 500,000 cycles, ensuring longevity in operation.

Environmental durability is supported with an operating temperature range from -25 °C to 40 °C and storage temperatures from -40 °C to 60 °C. It also includes features such as a green LED status indicator and protective circuits like a free-wheeling diode and reverse polarity protection, enhancing its usability in various applications.

The insulation coordination ratings include a pollution severity of 2 and a protection degree of IP20. Compliance with DIN EN 50178 standards reinforces its reliability in industrial environments.
