Weidmuller 1123010000

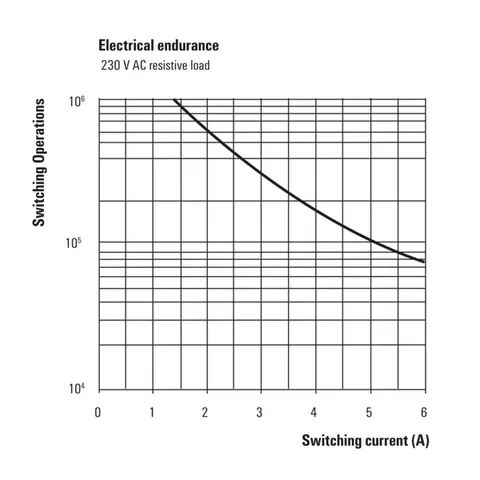

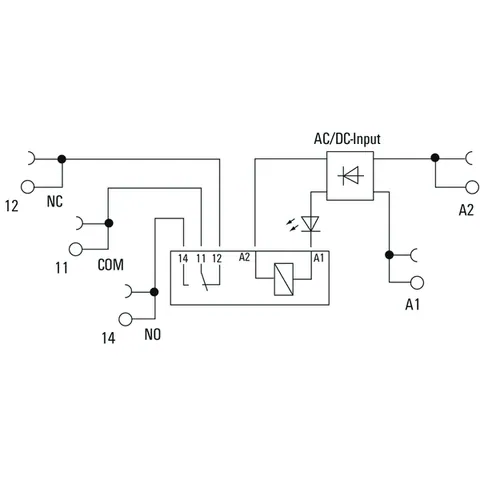

The Relay Module TRS 24VUC 1CO AU is designed to operate at a rated control voltage of 24 V UC ±10 %, with a continuous current capacity of 6 A. It incorporates a single CO contact constructed from AgNi with a thickness of 5µm gold plating, ensuring reliable performance over its mechanical service life of 5 million switching cycles.

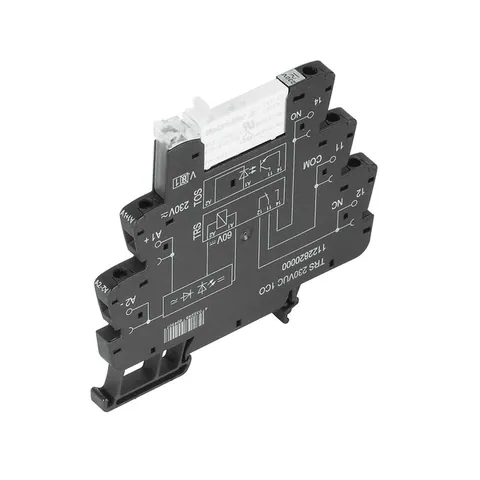

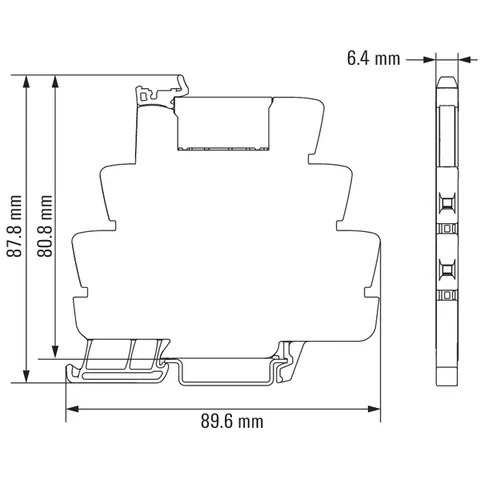

With a compact width of 6.4 mm and a height of 89.6 mm, this module is suitable for mounting on a TS 35 rail. The unit's net weight is 34 g, and it features screw connections for robust wiring. The module accommodates wire cross-sections ranging from 0.14 mm² to 2.5 mm², compatible with both flexible and rigid copper conductors, fulfilling various installation requirements.

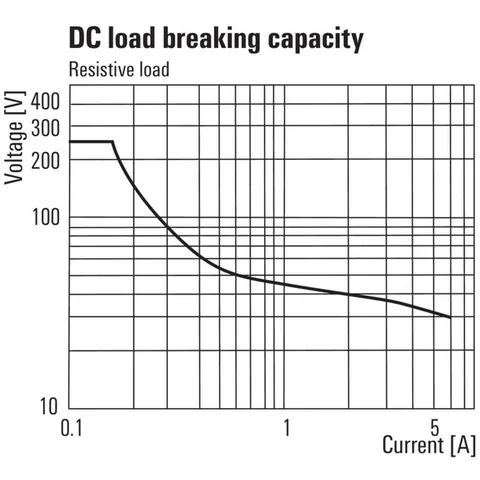

In terms of environmental compliance, it adheres to standards such as CE, CULUS, DNV GL, and EAC, and is ROHS compliant. The device operates within a temperature range of -40 °C to 60 °C, making it suitable for diverse operating conditions. Additionally, it is rated for a maximum switching voltage of 250 V AC and can handle inrush currents up to 20 A for 20 ms.

The relay module is built with high insulation coordination, featuring a dielectric strength of 4 kVeff for input/output connections and an IP20 protection degree. Its compliance with relevant standards, including EN 50178 and EN 61000-6-1, ensures reliable operation in industrial applications. The status indicator is a green LED, which provides clear visual feedback during operation.

For applications where space and...
