Weidmuller

1123850000

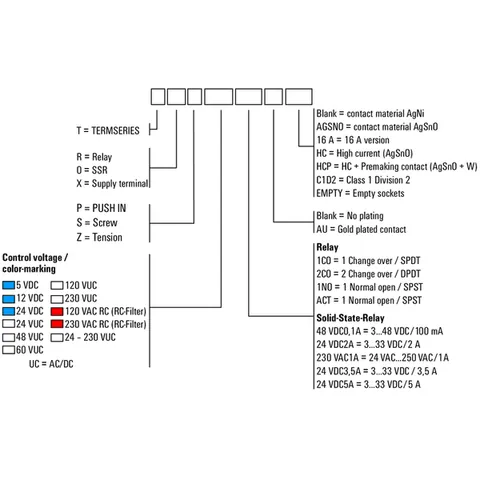

TRZ 24VDC 2CO AU
1123850000
1123850000
1123850000
1123850000
1123850000
1123850000
  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign-Up
Send request for price
1
Payment methods:
A total of 5 Parts In-Stock from 10 Distributors

General Data

Rail
TS 35
Test button
No
Mechanical switch position indicator
No
Colour
black

Approvals

Approvals
CE, CULUS, DNV GL, EAC
ROHS
Conform
UL File Number Search
E141197

Dimensions And Weights

Width
12.8 mm
Width (inches)
0.504 inch
Height
90.5 mm
Height (inches)
3.563 inch
Depth
87.8 mm
Depth (inches)
3.457 inch
Net weight
56.4 g

Connection Data

Wire connection method
Tension-clamp connection
Stripping length, rated connection
8 mm
Clamping range, rated connection
1.5 mm²
Clamping range, min.
0.14 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0.14 mm²
Wire cross-section, solid, max.
2.5 mm²
Wire connection cross-section, finely stranded, min.
0.14 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm²
Twin wire-end ferrules, min.
0.5 mm²
Twin wire-end ferrules, max.
1 mm²
Blade size
0.6 x 3.5 mm
Gauge to IEC 60947-1
A1, B1

Rated Data Ul

Ambient temperature (operational), max.
60 °C
Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor, flexible copper conductor
Pollution severity level
2

Contact Data

Contact type
2 CO contact (AgNi 5µm Au)

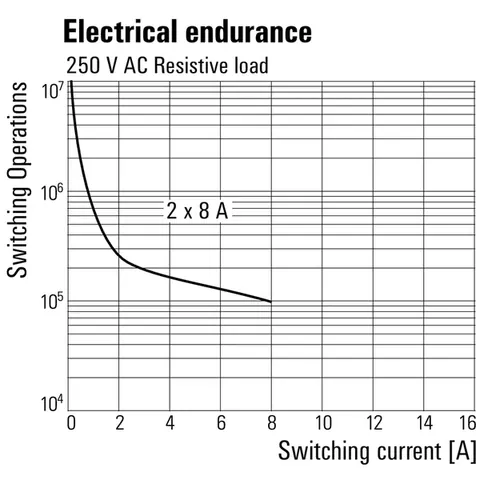

Mechanical service life
30 x 106 switching cycles

Input

Rated control voltage
24 V DC ± 20 %
Rated current DC
20.5 mA
Power rating
495 mW
Pull-in/drop-out voltage, typ.
17 V / 3 V DC
Pull-in/drop-out current, typ.
14 mA / 2 mA DC
Status indicator
Green LED
Protective circuit
Free-wheeling diode, Reverse polarity protection
Coil voltage of the replacement relay deviating from the rated control voltage
No
Coil voltage of the replacement relay
24 V DC

Classifications

ETIM 6.0
EC001437
ETIM 7.0
EC001437
EClass 9.0
27-37-16-01
EClass 9.1
27-37-16-01
EClass 10.0
27-37-16-01

Output

Rated switching voltage
250 V AC
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Continuous current
8 A
Inrush current
15 A / 4 s

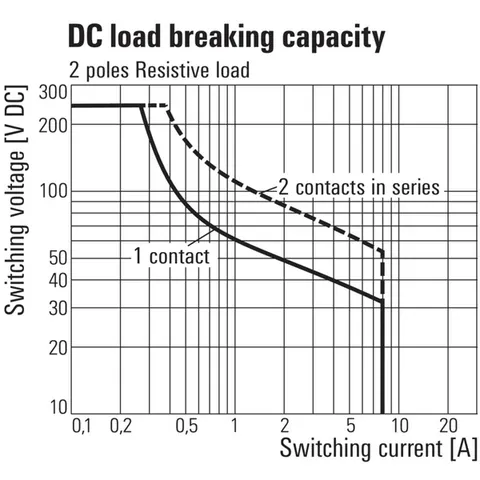

AC switching capacity (resistive), max.
2000 VA
DC switching capacity (resistive), max.
192 W @ 24 V
Switch-on delay
≤ 6 ms
Switch-off delay
< 18 ms
Min. switching power
1 mA @ 1 V
Max. switching frequency at rated load
0.1 Hz

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Insulation Coordination

Rated voltage
300 V
Surge voltage category
III
Pollution severity
2
Protection degree
IP20
Dielectric strength, Input/Output
1.2 kVeff / 5 s
Creepage and clearance distance input – output
≥ 5.5 mm
Dielectric strength of neighbouring contacts
2.5 kVeff / 1 Min.
Dielectric strength of open contact
1 kVeff / 1 min
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
6 kV (1.2/50 µs)

Temperatures

Humidity
5-95% relative humidity, Tu = 40°C, without condensation
Operating temperature, max.
60 °C
Operating temperature, min.
-40 °C
Storage temperature, max.
85 °C
Storage temperature, min.
-40 °C
Operating temperature
-40 °C...60 °C
Storage temperature
-40 °C...85 °C

Ratings Iecex/Atex/Cul

Certificate no. (cULus)
E141197

Further Details Of Approvals / Standards

Standards
EN 50178, EN 55011, EN 61000-6-1, 2, 4
Certificate No. (DNVGL)
TAA00001E5
Certificate no. (cULus)
E141197
