Weidmuller 1133640000

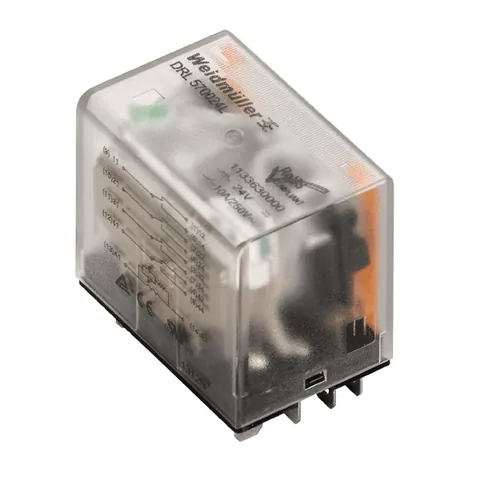

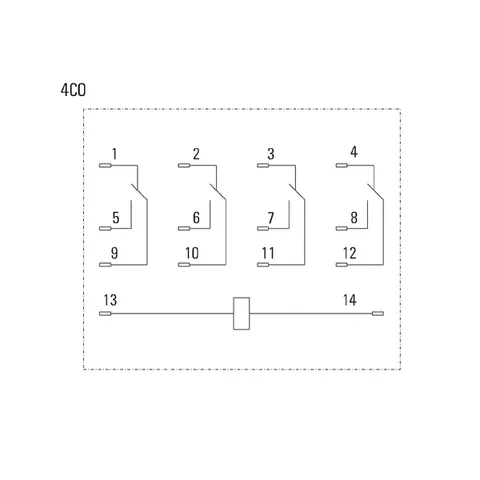

The DRL570048L relay features four CO contacts made from AgCdO, ensuring reliable operation with a rated control voltage of 48 V DC and a continuous current capacity of 10 A. It utilizes flat blade connections measuring 4.8 mm x 0.5 mm for efficient wiring.

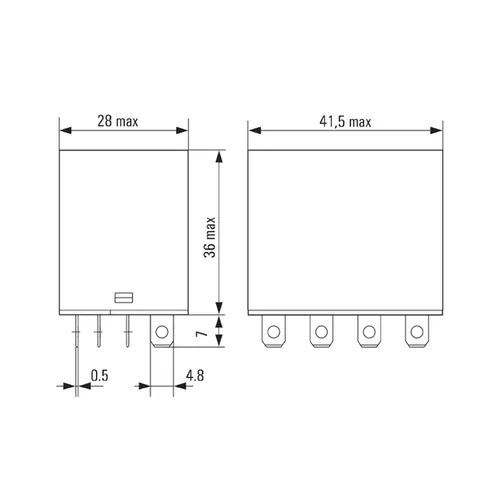

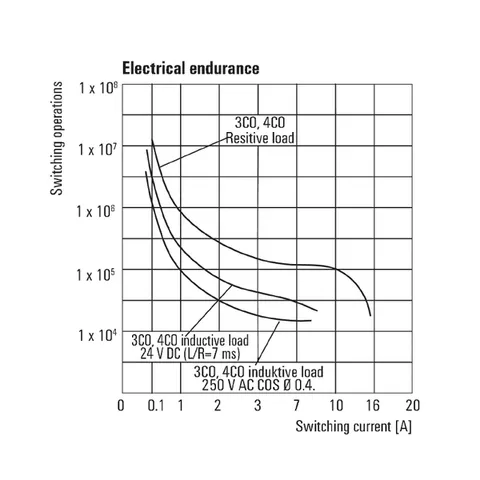

With a mechanical service life of up to 10 million switching cycles and a contact resistance of no more than 50 mΩ, this relay is designed for durability. The device operates within a temperature range of -25 °C to 55 °C and can handle relative humidity levels from 35% to 85%. The relay's compact dimensions include a width of 41.5 mm, a height of 28 mm, and a depth of 36 mm, resulting in a net weight of 65 g.

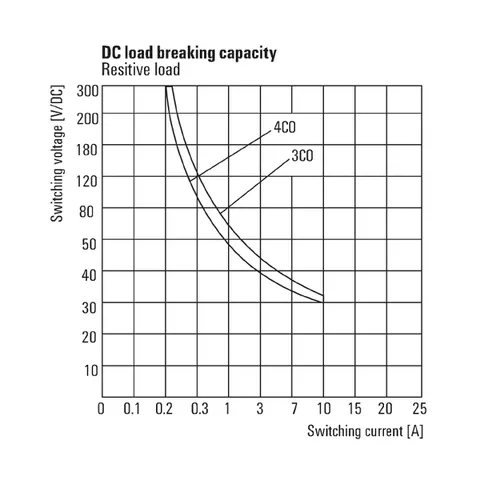

Compliance with standards such as IEC 61810-1 and EN 60664-1:2007 reinforces the reliability of this component, which also features a green LED status indicator. The dielectric strength between input/output is rated at 2 kVeff for 1 minute, ensuring robust insulation coordination. Additionally, the relay is suitable for various applications, with a maximum switching voltage of 250 V AC and a switching capacity of 2500 VA for resistive loads.
