Weidmuller 1133930000

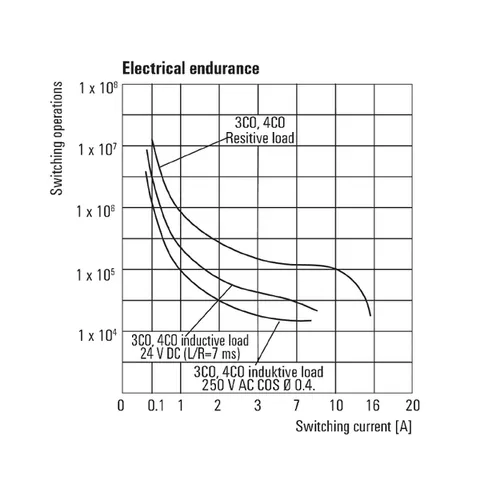

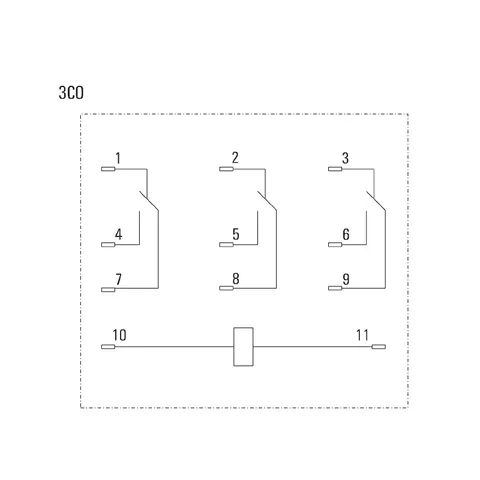

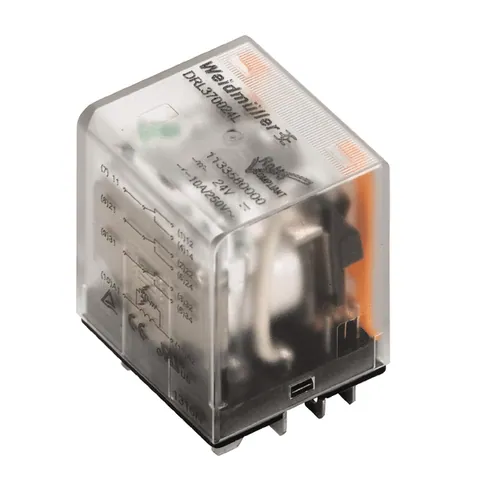

The Relay DRL370730L is designed for applications requiring reliable switching capabilities. It incorporates three CO contacts made from AgCdO, providing a contact resistance of ≤ 50 mΩ and a mechanical service life of 10 x 10⁶ switching cycles. The relay operates at a rated control voltage of 230 V AC and a continuous current of 10 A, with a maximum switching voltage of 250 V AC.

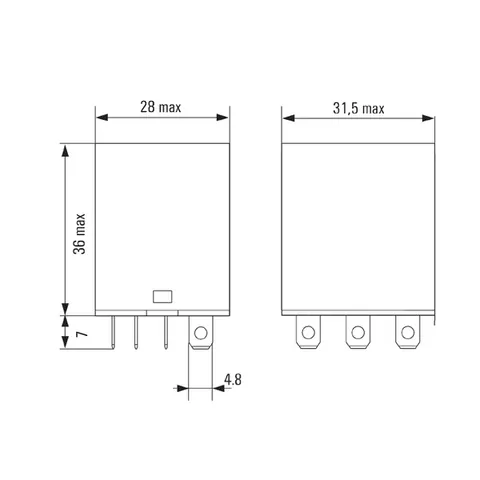

Measuring 31.5 mm in width, 28 mm in height, and 36 mm in depth, this relay has a net weight of 56.2 g. It features flat blade connections (4.8 mm x 0.5 mm) for easy installation. A red LED serves as a status indicator, while the coil resistance is rated at 8600 Ω ± 10%. The relay exhibits a pull-in voltage of 184 V AC and a drop-out voltage of 69 V AC.

In terms of environmental compliance, the product adheres to multiple standards including IEC 61810-1 and EN 60664-1:2007, and is classified under pollution severity class 3 with a protection degree of IP20. Operating temperatures range from -25 °C to 55 °C, with a relative humidity level between 35% and 85%. The relay's dielectric strength is rated at 2 kVeff for input/output isolation.
