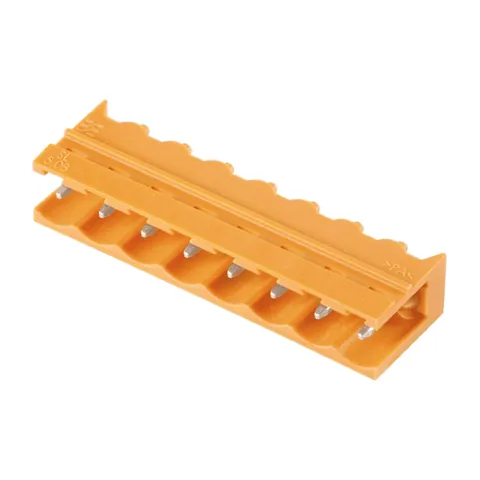

Weidmuller 1147010000
5.08 mm Male Header Connector, 15 Poles, 90° Angle, 3.2 mm Solder Pin Length
Product Description

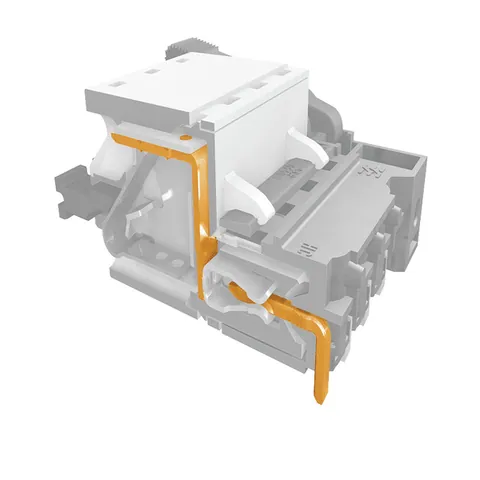

The PCB plug-in connector is designed for THT solder connection with a pitch of 5.08 mm, accommodating 15 poles at a 90° angle. The solder pin length measures 3.2 mm, ensuring compatibility with various board configurations.

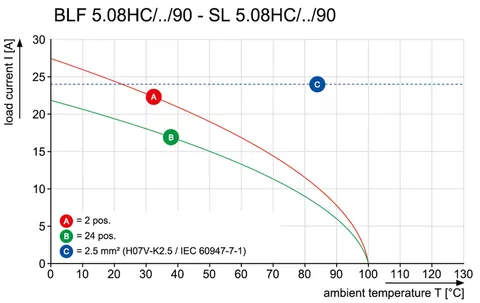

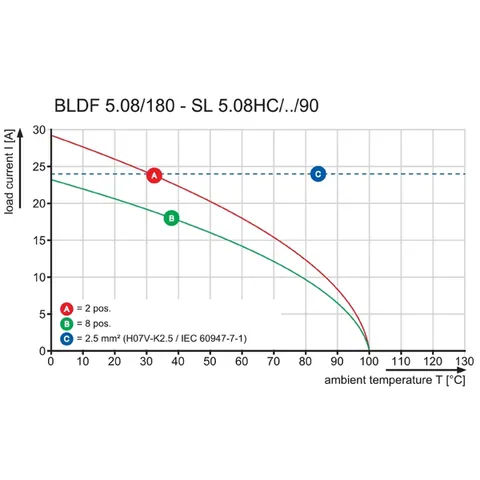

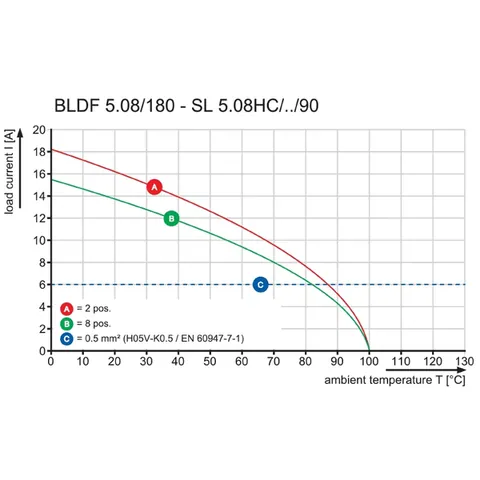

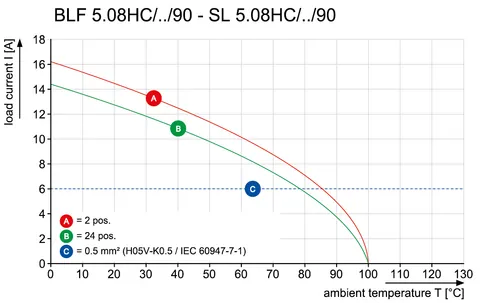

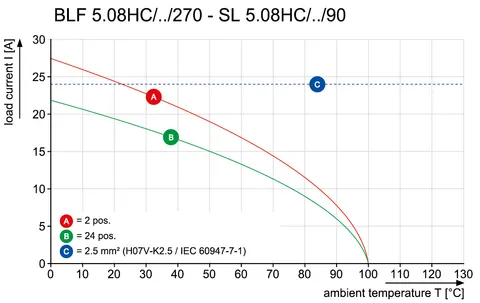

Rated for a maximum current of 24 A at 20°C, the connector also complies with IEC standards, including IEC 60664-1 and IEC 61984. It is suitable for use in environments with surge voltage classes and pollution degrees, with rated impulse voltage capabilities reaching up to 4 kV.
The insulating material is made from PA GF with a Comparative Tracking Index (CTI) of ≥ 550 and a UL 94 flammability rating of V-0, contributing to its durability under varying conditions. Operating temperature ranges from -50°C to 100°C, while storage conditions allow for temperatures between -25°C and 55°C with a maximum relative humidity of 80%.
Additionally, this connector comes packaged in a box with dimensions designed for efficient storage and handling. The product aligns with various industry standards for approvals, including cURus and EAC, making it suitable for a wide range of applications.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Italy, member since 2021, 10–19 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1147010000, including specifications and features.
CAD Models

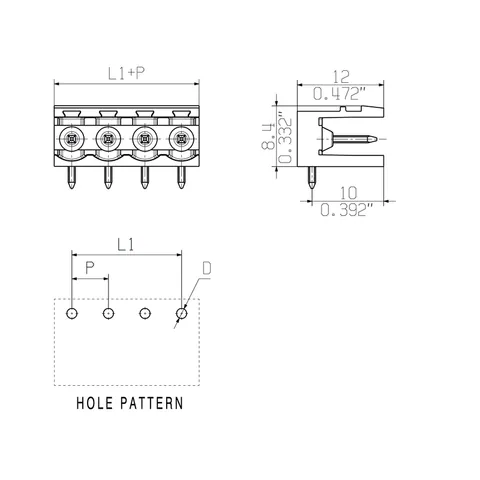

3D CAD model and technical drawings, ready for your design software.
Product data updated: 09-10-2026
