Weidmuller 1195310000

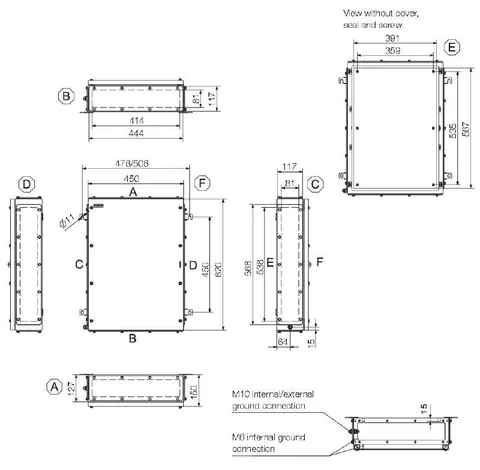

The KTB MH 624515 S4E1 is an empty enclosure crafted from stainless steel 1.4404 (316L) with an electropolished finish, suitable for terminal applications in various environments, including explosive risk zones. With dimensions of 620 mm in height, 450 mm in width, and 150 mm in depth, this enclosure features gland plates positioned at the bottom and is designed for installation on terminal rails or mounting plates.

It is built to withstand a wide operational temperature range of -60 °C to 135 °C and achieves a protection degree of IP66/IP67. The enclosure is equipped with a welded-on M6 stainless steel earth stud for grounding and has a maximum payload capacity of 112 kg. The lid can be opened at an angle of 130°, allowing easy access to the interior.

This enclosure is compliant with multiple standards, including DIN EN 62208 for empty enclosures, and is certified for use across various international safety regulations. The Designation Code for this product is essential for compliance verification in industrial settings.
