Weidmuller 1219380000

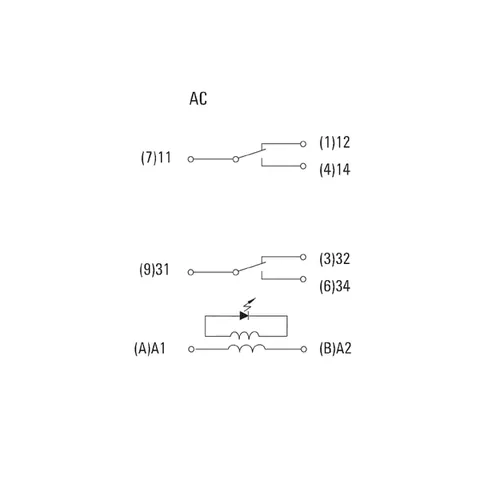

The DRW270730LT Relay features two CO contacts with a test button, utilizing AgCdO technology. It operates at a rated control voltage of 230 V AC with a continuous current rating of 16 A. The relay has flat blade connections measuring 4.8 mm x 0.5 mm, ensuring compatibility with various wiring setups.

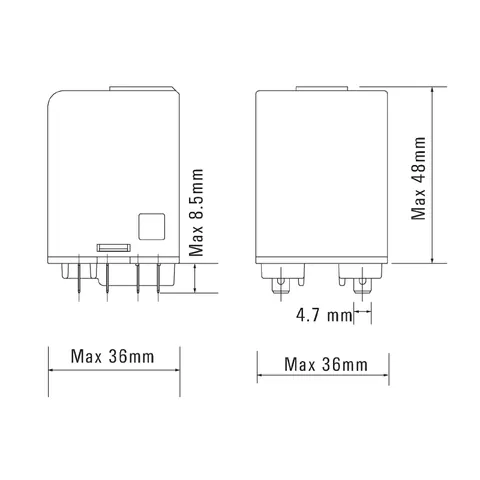

The device includes a lockable test button and a mechanical switch position indicator. With a compact design measuring 36 mm in width and height, and a depth of 48 mm, it weighs 81.5 g. The relay is compliant with several standards, including CE, cURus, and EAC, and is rated under UL File Number E312083.

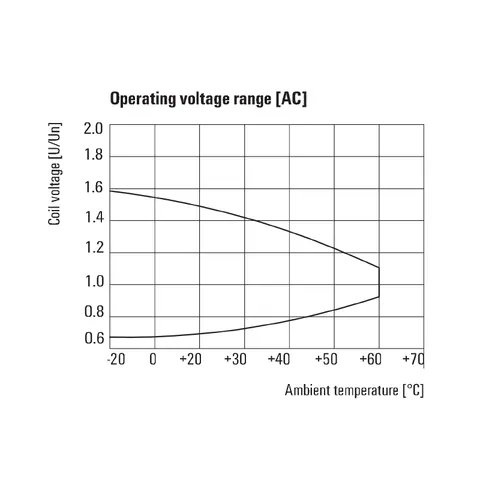

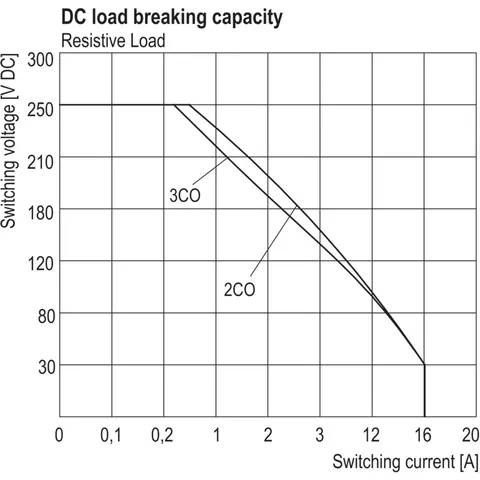

In terms of performance, the relay supports an inrush current of 80 A for 50 ms, with an AC switching capacity of up to 6400 VA and a DC capacity of 384 W at 24 V. The maximum switching voltage for AC is 400 V, while for DC it is 250 V. The switch-on and switch-off delays are both less than 20 ms. It operates effectively within a temperature range of -40 °C to 60 °C and a humidity level of 35% to 85%.

Insulation coordination is in accordance with EN 61810-1:2008, rated for 400 V, and features a protection degree of IP20. The dielectric strength between input and output is maintained at 2.5 kVeff for one minute, ensuring reliable operation under varying conditions.
