Weidmuller 1220200000

The D-SERIES DRW / DRH relay features two normally open (NO) contacts equipped with a blow-out magnet and a lockable test button, utilizing AgSnO2 material. It operates at a rated control voltage of 24 V AC and supports a continuous current of 16 A. With flat blade connections measuring 4.8 mm x 0.5 mm, this relay is designed for ease of integration.

Measuring 36 mm x 36 mm x 48 mm, the relay has a net weight of 88.4 g and complies with several standards, including IEC 61810-1 and EN 60664-1:2007. The relay is classified under ETIM 6.0 as EC001437, ensuring compatibility with various industrial applications. The dielectric strength between input and output reaches up to 4 kV for one minute, and it offers a protection degree of IP20.

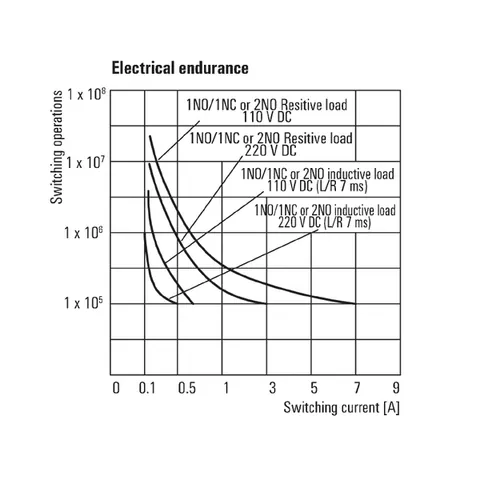

Operational efficiency is enhanced with a maximum switching voltage of 250 V AC and a switching capacity of 4000 VA under resistive loads. The device is rated for a mechanical service life of 10 million switching cycles and features a status indicator in the form of a red LED. Environmental compliance includes adherence to REACH regulations regarding lead as a substance of very high concern.

For installation in dynamic environments, it functions effectively across a temperature range from -40 °C to 60 °C and a relative humidity level of 35% to 85%. The relay's inrush current is rated at 80 A for 50 ms, providing strong performance during activation.
