Weidmuller 1289310000
PCB Plug-in Connector, Male Header, 3.50 mm, 14 Poles, 90°
Product Description
The connector is designed for use in printed circuit boards, featuring a male header configuration with a pitch of 3.50 mm and 14 poles positioned at a 90° angle. The solder pin length is 3.2 mm and is tinned to ensure reliable connections. The connector meets high standards with a rated voltage of 150 V in use group B and 50 V in use group C according to UL 1059. It is also certified by CSA, cURus, and EAC, ensuring compliance with international safety standards.
Constructed from LCP GF insulating material, the connector exhibits a moisture sensitivity level of 1 and offers high insulation strength of ≥ 108 Ω. The operating temperature range is extensive, spanning from -50 °C to 120 °C, thus accommodating various environmental conditions. Additionally, the connector supports up to 10 A of rated current for both use groups B and C, confirming its capability for demanding applications.

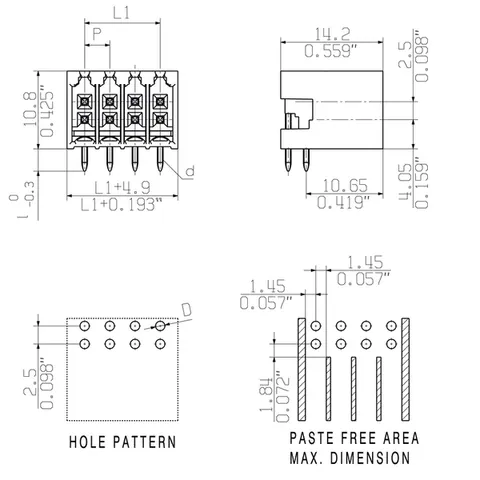

Dimensions include a width of 25.9 mm, height of 14 mm, and depth of 14.2 mm, with a net weight of 5.208 g. The product ensures touch-safe protection according to DIN VDE standards and can withstand up to 25 plugging cycles. The connector is packaged in a box for secure delivery.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 150 V
- Rated voltage (Use group C / UL 1059)
- 50 V
- Rated current (Use group B / UL 1059)
- 10 A
- Rated current (Use group C / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1289310000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 19-09-2026
