Weidmuller 1331180000
LMF 5.08/07/180 3.5SN OR BX
Product Description

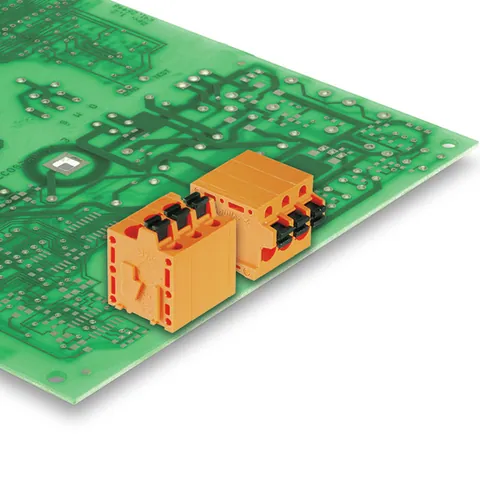

The LMF 5.08/07/180 3.5SN OR BX is a printed circuit board terminal designed for efficient electrical connections. With a pitch of 5.08 mm and a maximum clamping range of 2.5 mm², this component supports wire connections ranging from AWG 24 to AWG 12. The device features a solder pin length of 3.5 mm, ensuring reliable attachment to PCBs.
Operating within a temperature range of -50 °C to 120 °C, this terminal is suitable for various environments. The orange insulated material, made of Wemid (PA), exhibits a minimum comparative tracking index (CTI) of ≥ 600 and meets UL 94 V-0 flammability standards. It has a rated voltage of 400 V for surge voltage class II/2 and can handle a rated current of up to 24 A at 20 °C.
Additional specifications include a touch-safe protection rating of IP 20, making it safe from finger contact. The terminal complies with multiple industry standards, including IEC 60664-1 and IEC 61984, and has been approved by CSA and cURus. The product family is categorized under OMNIMATE Signal - series LMF, confirming its utility in signal transmission applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 20 A
- Rated current (Use group D / UL 1059)
- 10 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 1331180000, including specifications and features.
CAD Models

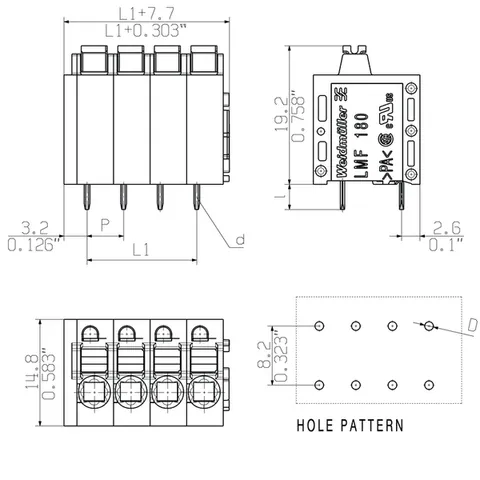

3D CAD model and technical drawings, ready for your design software.
