Weidmuller 1812540500

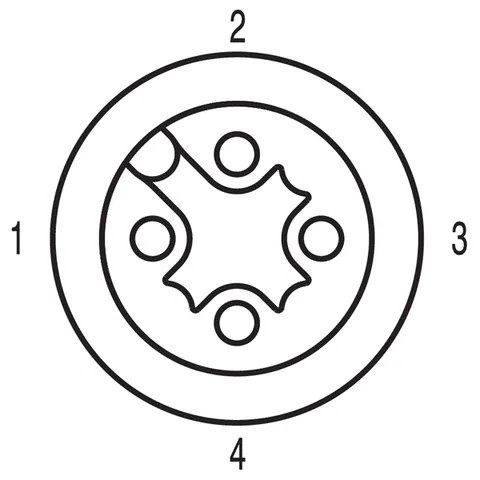

The M12 female socket connector, designated as SAIL-M12BG-4S5.0U, features a 4-pole configuration and a cable length of 5 meters. This connector is designed without a connector on one end, ensuring flexibility in various applications. The housing is constructed from PUR, providing durability and resistance to environmental factors, while the threaded ring is made of diecast zinc.

With an IP65 to IP68 protection degree when properly screwed in, this connector is suitable for a variety of environments. It supports a rated voltage of 250 V and a rated current of 4 A, with a contact surface that is gold-plated to enhance conductivity. The insulation strength reaches 108 Ω, ensuring reliable performance across a temperature range of -25 to +80 °C.

In terms of cable specifications, the connector features a core cross-section of 0.34 mm² and an outside diameter of 5.4 ± 0.2 mm. The cable is shielded and its sheathing material is also PUR, contributing to its overall robustness. It is compliant with various standards including IEC 61076-2-101, with certifications such as CULUS and ROHS conformity.

This product is ideal for applications requiring reliable connectivity in industrial settings, where resistance to bending and torsion is critical. The connector can withstand up to 2 million bending cycles and has been tested for hydrolysis and microbe resistance.
