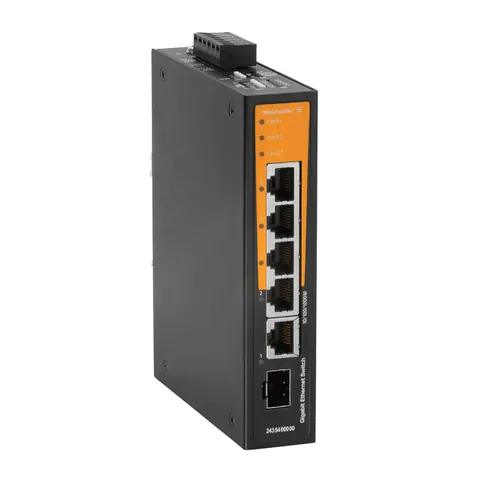

Weidmuller 2435410000

The unmanaged network switch is designed for robust connectivity with a bandwidth backplane of 10 Gbps. It includes 4 RJ45 ports supporting 10/100/1000BaseT(X), along with a combo port capable of handling 10/100/1000BaseT(X) or 100/1000BaseSFP connections. Its dimensions are 29 mm width, 135 mm height, and 105 mm depth, with a net weight of 422 g.

Operating within an impressive temperature range of -40 °C to 75 °C, this switch is suitable for harsh environments, backed by an MTBF of 2,823,446 hours. It complies with several industry standards, including CULUS and DNV GL, ensuring reliability and safety in various applications.

For versatile installation, it can be mounted on a DIN rail or panel with optional kits. The switch features an IP30 protection degree, making it suitable for industrial settings. Additional features include a packet buffer size of 1,024 Kbit and support for jumbo frames up to 10 KB. The device also offers a relay output for alarm contacts and is equipped with several DIP switches for port surveillance and energy-efficient Ethernet settings.

Environmental compliance is assured with REACH SVHC and RoHS certifications, making it a responsible choice for modern networking needs. The switch is suitable for applications demanding high reliability in data transmission.
