Weidmuller 2471530000
LLF 7.50/02/90V 5.0SN BK BX
Product Description

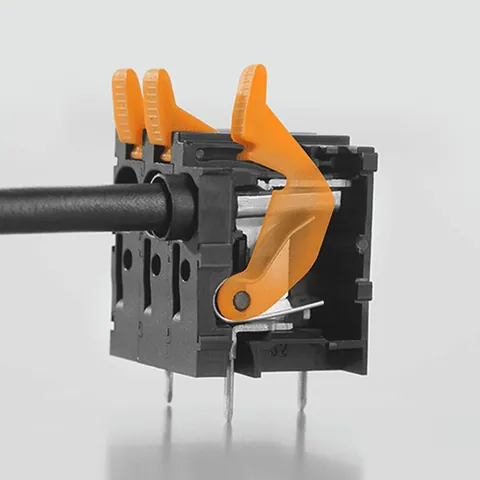

This printed circuit board terminal features a 7.50 mm pitch and accommodates two poles with a clamping range of up to 6 mm². The terminal is designed with a PUSH IN mechanism with an actuator, facilitating efficient assembly and secure connections.
The solder pin length is 5 mm, and the device is finished in black with a tinned contact surface. Rated data according to UL 1059 includes a maximum voltage rating of 600 V and a rated current of 35 A for use groups B and C. Furthermore, it maintains compliance with IEC standards, showcasing a rated voltage for surge voltage class/pollution degree II/2 of 1,000 V and an impulse voltage rating of 8 kV.

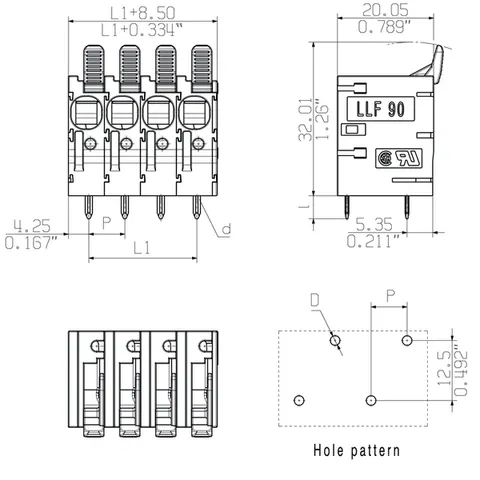

Constructed from Wemid (PA) insulating material, this terminal withstands operational temperatures ranging from -40 °C to 120 °C, making it suitable for diverse environmental conditions. The terminal's dimensions include a width of 16 mm, height of 36.55 mm, and depth of 22.07 mm, with a net weight of 7.358 g. It is packaged in a box with dimensions of 220 mm x 210 mm x 45 mm.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Italy, member since 2021, 10–19 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 600 V
- Rated voltage (Use group C / UL 1059)
- 600 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 35 A
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 2471530000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 09-10-2026
