Weidmuller 2529930000
SV-SMT 7.62HP/03/90MSF2 SC/6 2.6SN BX
Product Description
The SV-SMT 7.62HP/03/90MSF2 SC/6 2.6SN BX is a male header PCB plug-in connector designed for THT/THR solder connections. It features a pitch of 7.62 mm and accommodates 3 poles, with each pole having 2 solder pins of 2.6 mm length. The connector is constructed with a tinned copper alloy contact surface, ensuring durability and reliability.
According to UL 1059 standards, this connector supports rated voltages of up to 600 V for use group D and a rated current of 33 A for use group B and C. The insulation strength is rated at ≥ 108 Ω, with a comparative tracking index (CTI) of ≥ 500, indicating its suitability for various applications. The product also complies with IEC 60664-1 and IEC 61984, with a rated impulse voltage of 6 kV for pollution degree II and III.

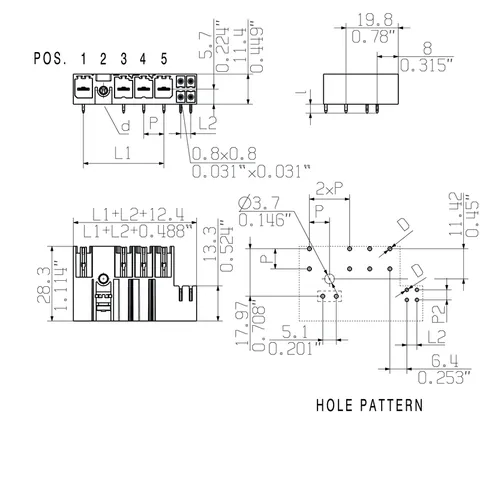

In terms of dimensions, the height of the connector is 11.4 mm, and it has a depth of 28.3 mm, making it compact for PCB mounting. The connector operates effectively within a temperature range of -50 °C to 130 °C, with a moisture sensitivity level of 3. Its packaging is provided in a box format, ensuring safe delivery and storage.
Need more information?
Offer details
- Offer from:
Trusted supplier — Czechia, member since 2023, 100–499 employees - Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group C / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 600 V
- Rated current (Use group B / UL 1059)
- 33 A
- Rated current (Use group C / UL 1059)
- 33 A
- Rated current (Use group D / UL 1059)
- 5 A
Available Offers
(6)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | SupplierCzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time: 26 days | Supplier NetherlandsTrusted supplier — member since 2021 | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2024, 20–49 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2023, 5–9 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 2529930000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
