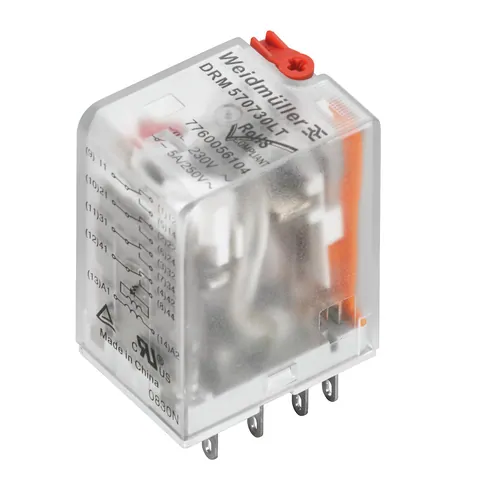

Weidmuller 7760056101

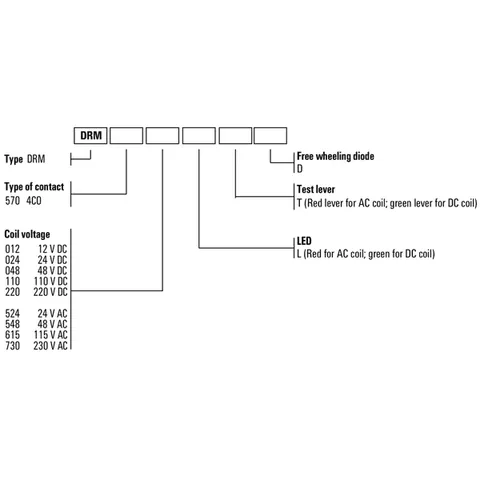

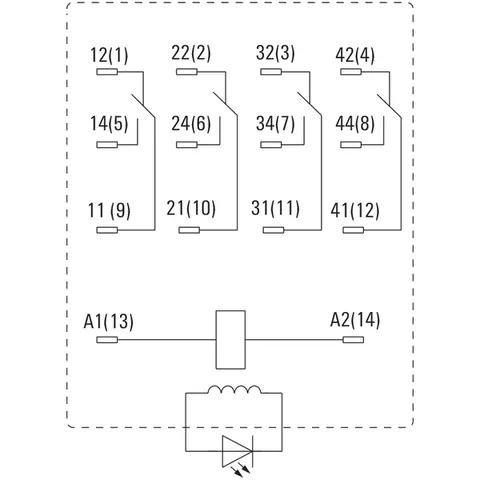

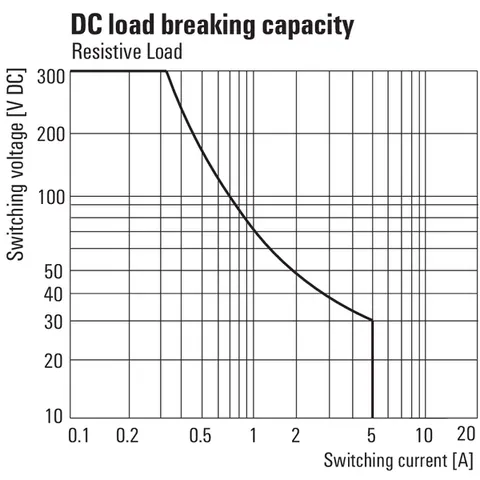

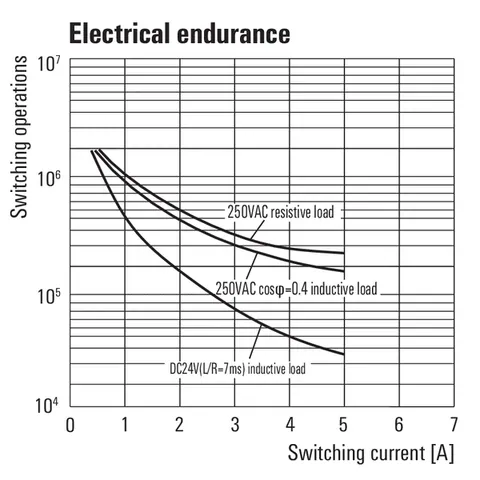

The DRM570524LT relay is equipped with four CO contacts and includes a lockable test button for operational verification. The contacts utilize AgNi material with a gold plating of 0.15 μm, ensuring reliable performance with a contact resistance of ≤ 50 mΩ. It is designed for a rated control voltage of 24 V AC, with a continuous current rating of 5 A and an AC switching capacity of up to 1250 VA.

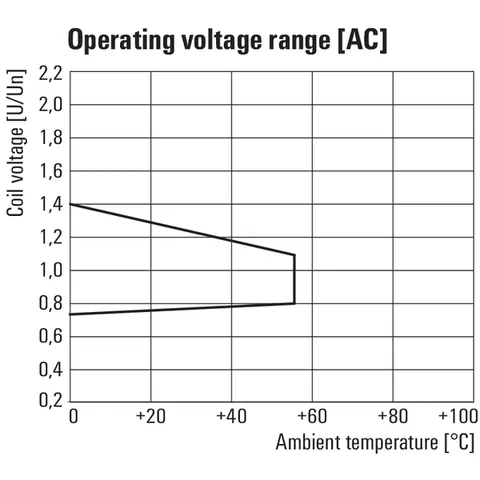

This relay operates efficiently within a temperature range of -40 °C to 55 °C, and can withstand humidity levels of 35 to 85% without condensation. The input specifications include a pull-in voltage of 19.2 V AC and a drop-out voltage of 7.2 V AC, with a coil resistance of 160 Ω ± 10%. The status of the relay is indicated by a red LED.

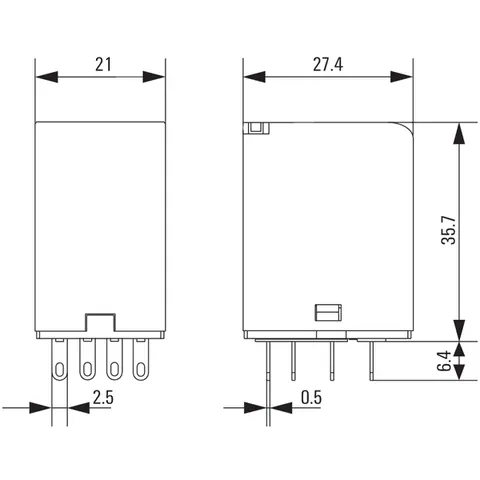

In terms of dimensions, the relay measures 21 mm in width, 27.4 mm in height, and 35.7 mm in depth, weighing approximately 36.05 g. The relay is compliant with various international standards, including IEC 61810-1 and UL 508, and carries approvals such as CE and cURus (Certificate No. E312083). The protection degree is IP20 and it features a dielectric strength of 1.8 kV for input/output separation.
