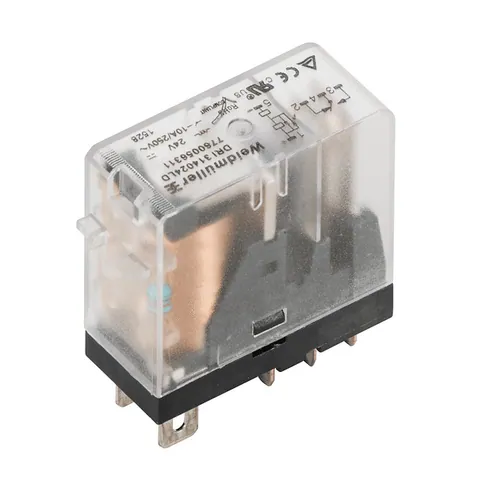

Weidmuller 7760056310
DRI314012LD Relay
Product Description

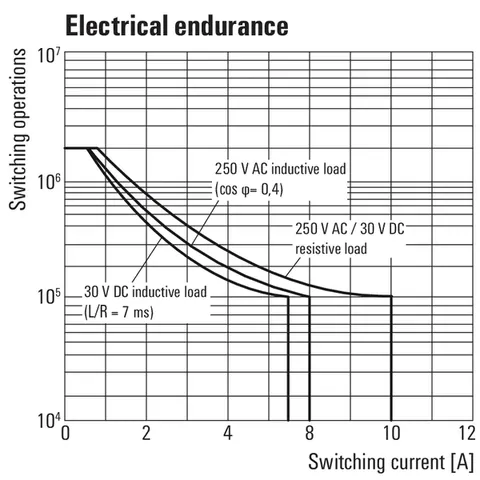

The DRI314012LD Relay is designed for reliable switching applications with a rated control voltage of 12 V DC and a continuous current capacity of 10 A. This relay incorporates a single CO contact made of silver nickel (AgNi), ensuring effective performance over its mechanical service life of 10 million switching cycles.

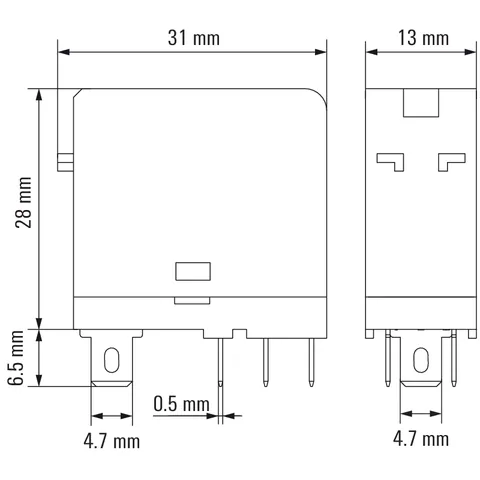

With a compact width of 13 mm and a height of 31 mm, this relay is suited for space-constrained environments. It utilizes flat blade connections measuring 4.7 mm x 0.5 mm for easy installation. The relay is compliant with multiple standards, including IEC 61810-1 and EN 60664-1:2007, and features an IP20 protection degree.

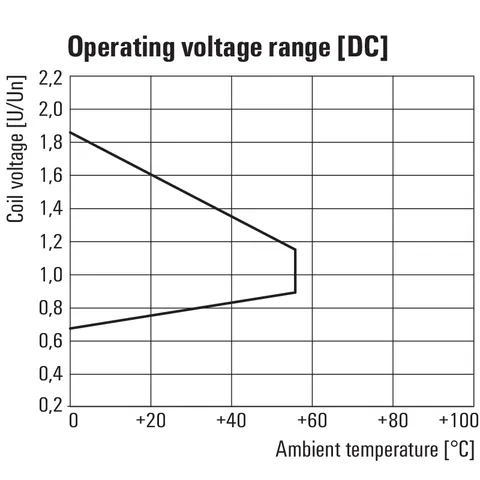

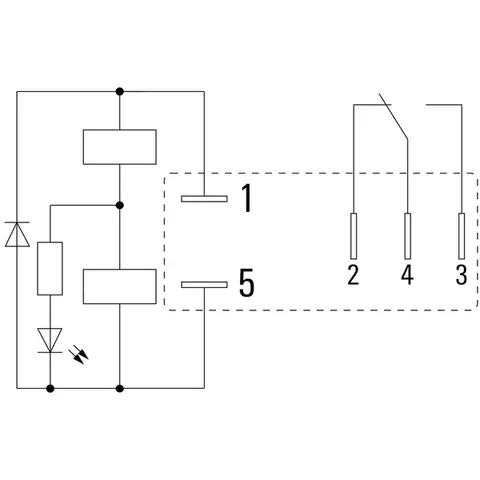

Operating within a temperature range of -40 °C to 55 °C, the relay can handle humidity levels between 35% and 85% without condensation. Its dielectric strength capabilities include a 5 kV effective input/output isolation for enhanced safety. The device also integrates a green LED status indicator and a protective free-wheeling diode for added circuit protection.
This model is approved under various certifications such as CE, cURus (Certificate No. E312083), and complies with ROHS standards.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Italy, member since 2021, 10–19 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Test button
- No
- Mechanical switch position indicator
- No
- Colour
- Transparent
- UL 94 flammability rating
- V-2
- Approvals
- CE, cURus, EAC
- ROHS
- Conform
Available Offers
(1)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 7760056310, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
