Weidmuller 8690030000

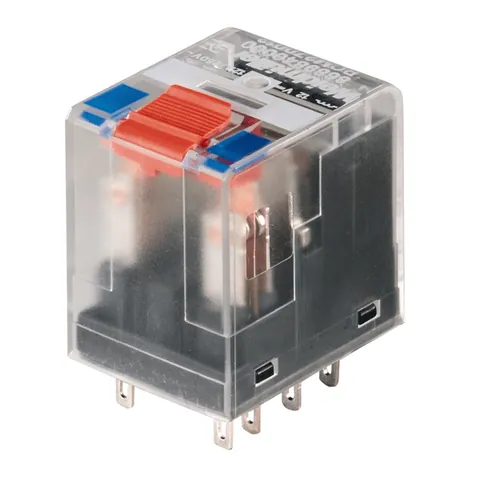

RCM370524 Relay with 3 CO Contacts
Product Description

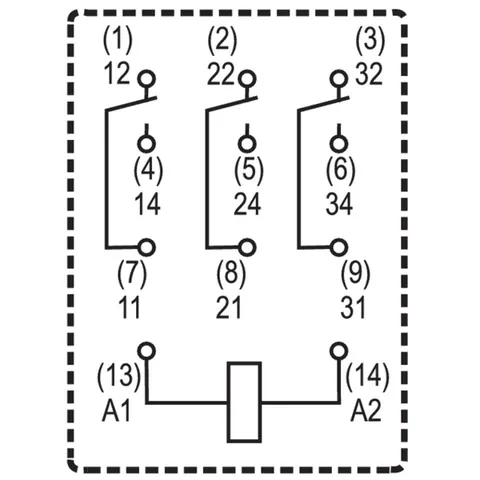

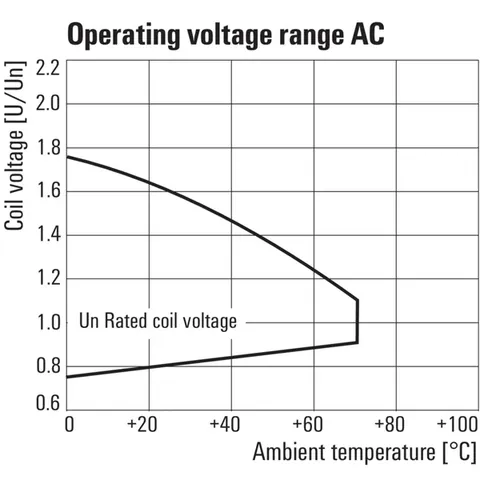

The RCM370524 relay is equipped with three CO contacts and a test button, constructed from AgNi 90/10 material. It operates at a rated control voltage of 24 V AC and supports a continuous current of 10 A. The device features a plug-in connection for ease of integration.

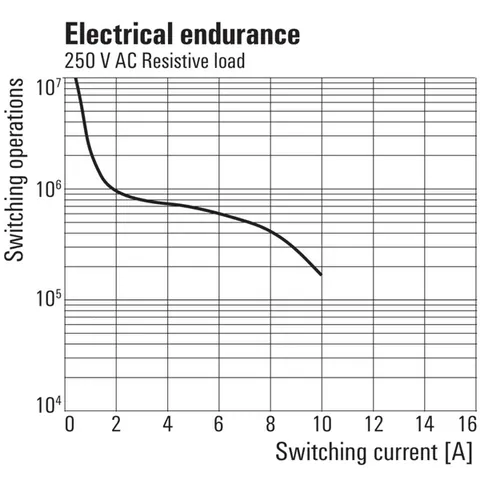

With a mechanical service life rated for up to 20 million switching cycles for AC coils and 30 million for DC coils, this relay is built for durability. It also has a rated switching voltage of 240 V AC, with a maximum switching voltage of 400 V AC, and can handle an inrush current of 20 A for 20 ms.

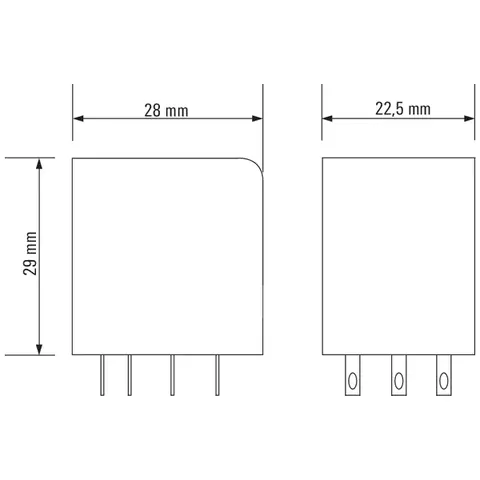

In terms of dimensions, the relay measures 22.5 mm in width, 28 mm in height, and 29 mm in depth, with a net weight of 30.511 g. It also includes a mechanical switch position indicator and is constructed with a transparent color for visibility.

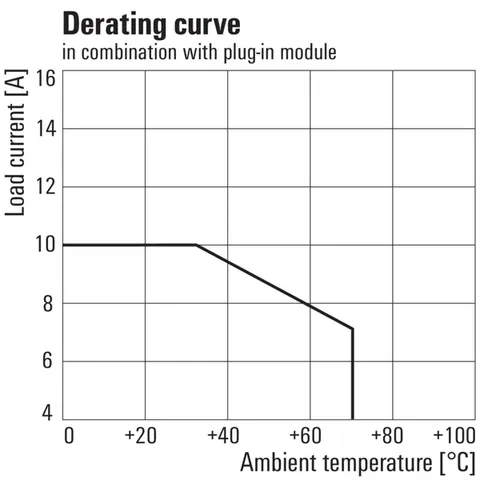

The relay adheres to several standards, including IEC 61810-1 and UL 508, and has multiple approvals such as CE and CSA. The insulation coordination features a protection degree of IP20 and a dielectric strength of 2.5 kVeff for input/output connections. Operating temperatures range from -40 °C to 70 °C, ensuring reliability in various environments. This product is classified under the Designation Code of EC001437.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Poland, member since 2021, 500+ employees
- Availability:
- 3 pcs.Updated at: 08-10-2026In-Stock
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Weidmuller
- Test button
- yes (lockable)
- Mechanical switch position indicator
- Yes
- Colour
- Transparent
- UL 94 flammability rating
- V-2
- Approvals
- CE, CSA, cURus, EAC, VDE
- ROHS
- Conform
