Weidmuller 8690230000

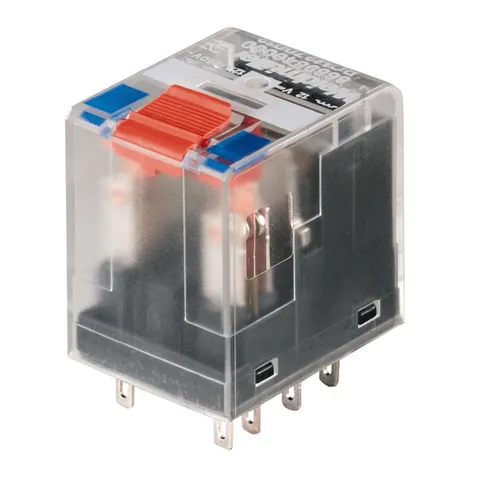

RCM570L48 Relay with 4 CO Contacts
Product Description

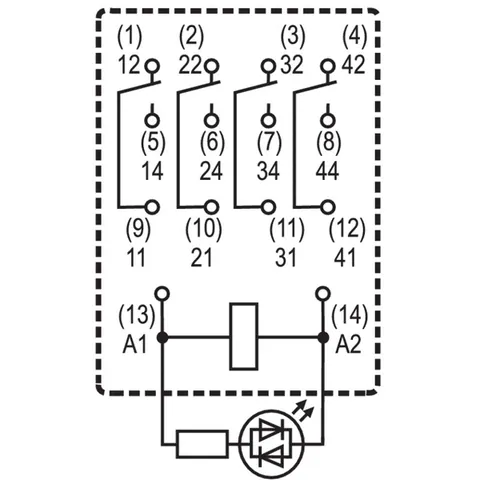

The RCM570L48 relay is equipped with 4 changeover contacts (AgNi 90/10) and is suitable for applications requiring a rated control voltage of 48 V DC. It can handle a continuous current of 6 A and features a plug-in connection method for ease of installation.

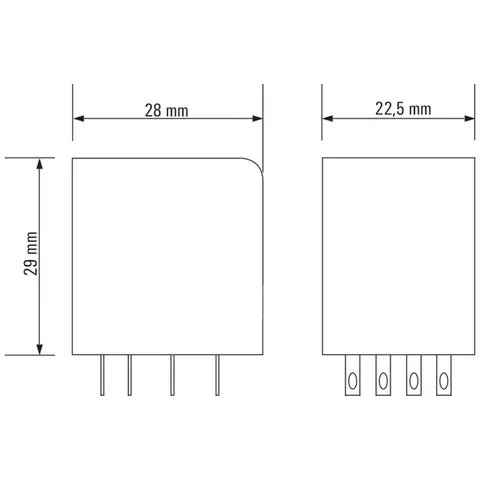

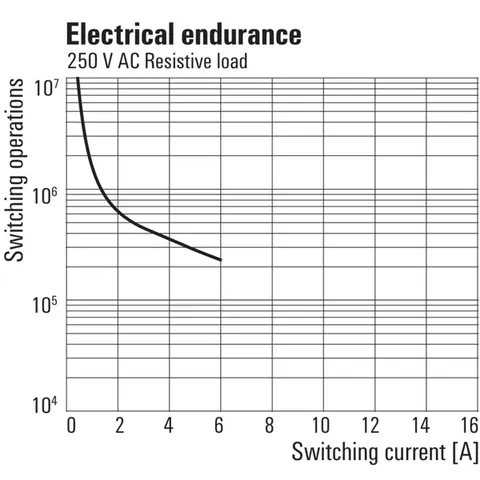

In terms of durability, this relay has a mechanical service life rated for 20 million switching cycles for AC coils and 30 million for DC coils. Its compact dimensions of 22.5 mm width and 28 mm height make it efficient for space-constrained setups.

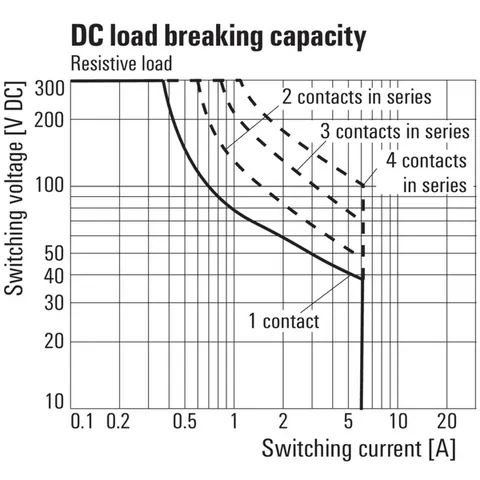

With a maximum switching voltage of 240 V AC and a switching capacity of 1500 VA for AC loads, the RCM570L48 also supports DC loads up to 144 W at 24 V. It includes a status indicator via a red LED and features a switch-on delay of ≤ 15 ms and a switch-off delay of ≤ 10 ms.
This relay conforms to various standards, including IEC 61810-1 and UL508, and features a protection degree of IP20. The device operates effectively across a temperature range of -40 °C to 70 °C and can withstand humidity levels of up to 93% at 40 °C without condensation.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Czechia, member since 2023, 100–499 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Test button
- yes (lockable)
- Mechanical switch position indicator
- Yes
- Colour
- Transparent
- UL 94 flammability rating
- V-2
- Approvals
- CE, CSA, cURus, EAC, VDE
- ROHS
- Conform
Available Offers
(8)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier CzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2024, 20–49 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time: 88 days | Supplier NetherlandsTrusted supplier — member since 2021 | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PortugalTrusted supplier — member since 2022, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Latvia
Netherlands
Portugal
Poland
ItalyOffer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 8690230000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
