Weidmuller 8690630000

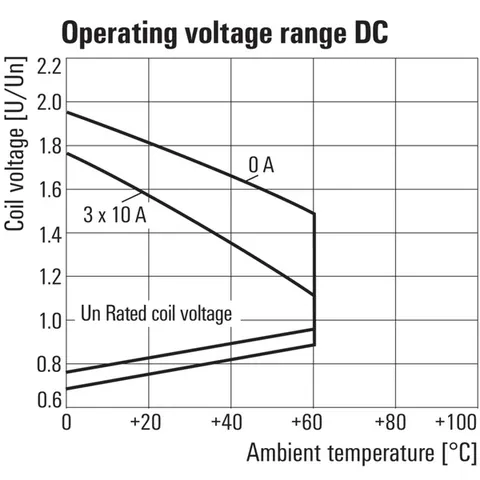

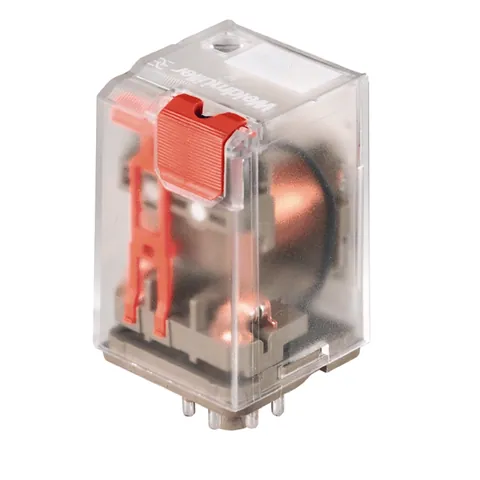

The RRD321048 relay is designed for applications requiring reliable switching with three CO contacts and a lockable test button. It operates efficiently at a rated control voltage of 48 V DC and can handle a continuous current of 10 A. The relay's mechanical service life is rated for 20 million switching cycles, ensuring durability in demanding environments.

Dimensions measure 35.5 mm in width and height, with a depth of 57 mm. The unit weighs 86.84 g. It features a plug-in connection method for easy installation, complemented by a transparent color for visibility of internal components.

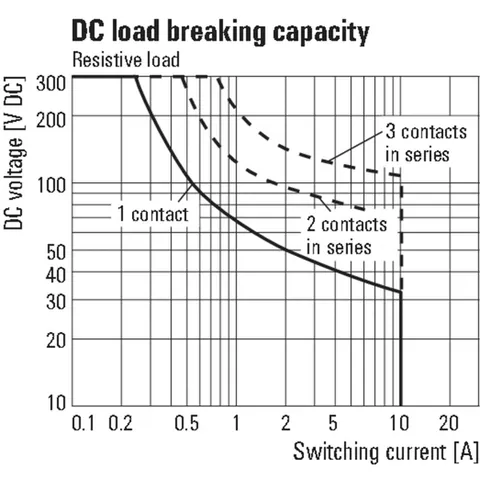

Rated for a maximum switching voltage of 240 V AC and capable of handling inrush currents up to 20 A for 20 ms, this relay supports various applications. It offers a reliable switching capacity of 2500 VA for AC and 240 W for DC loads. The switch-on delay is ≤ 15 ms, while the switch-off delay is ≤ 10 ms.

In terms of insulation, the relay features a protection degree of IP20 and meets the surge voltage category III standards. It can operate in temperatures ranging from -40 °C to 60 °C and withstand humidity levels of up to 93% at 40 °C without condensation.

This product adheres to several standards, including IEC 61810-1 and UL508, with relevant approvals such as CE, CSA, and cURus. The certification numbers include E224238 for cURus, ensuring compliance with international safety standards.
