Weidmuller 8870290000

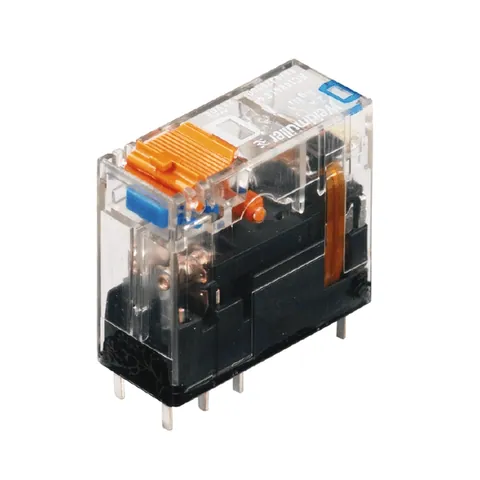

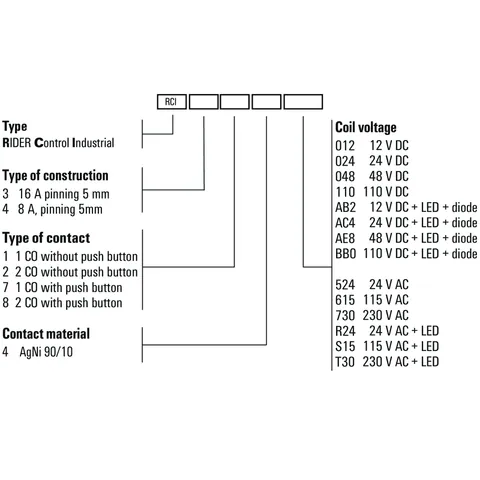

RCI374S15 Relay with 1 CO Contact and Test Button
Product Description

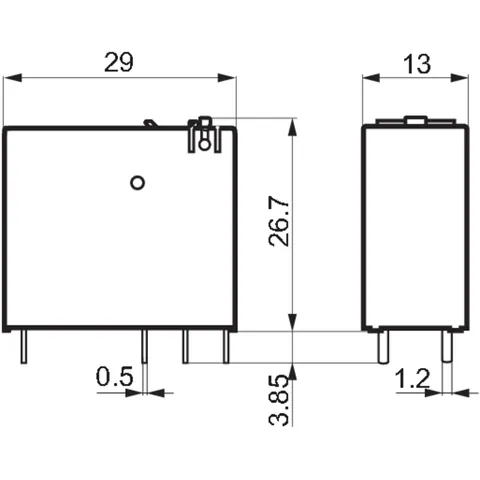

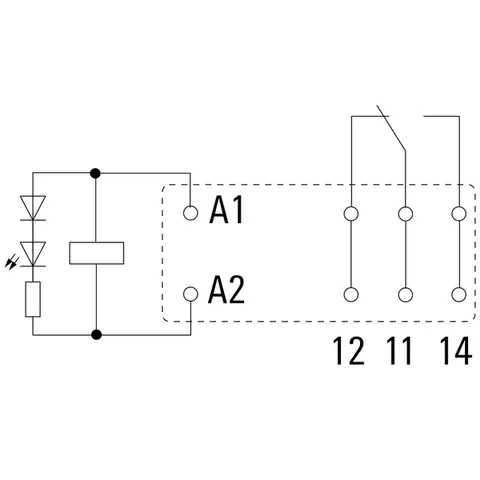

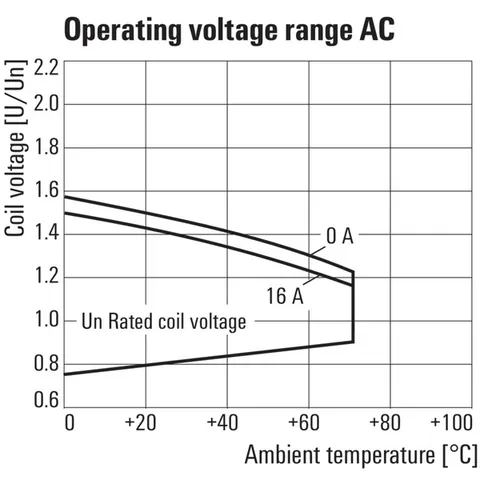

The RCI374S15 relay is designed with one changeover (CO) contact utilizing AgNi 90/10 material and includes a lockable test button. It operates at a rated control voltage of 115 V AC and supports a continuous current of 16 A. The relay's compact dimensions include a width of 13 mm, height of 29 mm, and depth of 26.7 mm, with a net weight of 13.909 g.

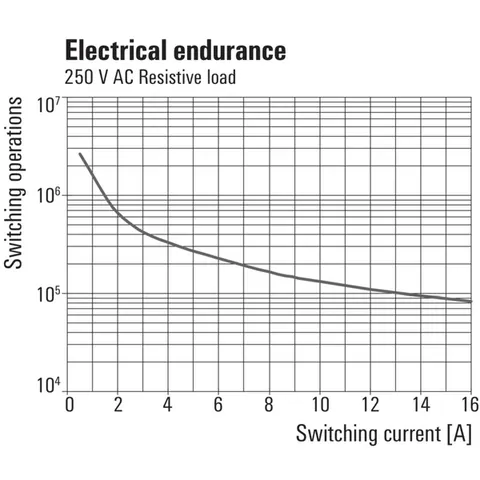

Connection is facilitated via a plug-in method with a pitch of 5 mm. The relay features a red LED status indicator and demonstrates a mechanical service life of 5 x 10^6 switching cycles for AC coils and 10 x 10^6 for DC coils. Additionally, it has a maximum switching voltage of 400 V AC and an inrush current rating of 30 A for 4 seconds.
With an operating temperature range from -40 °C to 70 °C, this relay is suitable for various environments. The dielectric strength between input and output is rated at 5 kV for one minute, ensuring reliability under high voltage conditions. The unit is compliant with multiple standards, including IEC 61810-1 and UL508, and carries several approvals such as CE, CSA, and cURus. Its insulation coordination is set for a rated voltage of 250 V and a pollution severity of 2, making it suitable for diverse applications.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Czechia, member since 2023, 100–499 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Test button

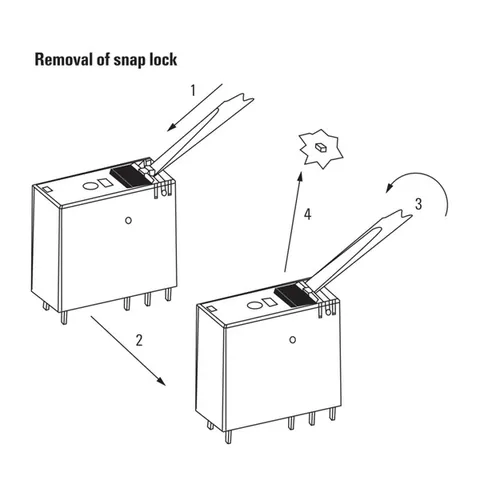

- yes (loackable, just when removing the detent lock)
- Mechanical switch position indicator
- Yes
- Colour
- Transparent
- UL 94 flammability rating
- V-2
- Approvals
- CE, CSA, cURus, EAC, VDE
- ROHS
- Conform
Available Offers
(7)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier CzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2024, 20–49 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PortugalTrusted supplier — member since 2022, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2023, 5–9 employees | Warranty 12 months |
Latvia
Portugal
Poland
Italy
GermanyOffer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 8870290000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
