Weidmuller
8870320000
- Condition:
- New Factory Sealed
- Available:
- 218 pcs.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Weidmuller
8870320000
1 / 9
Description

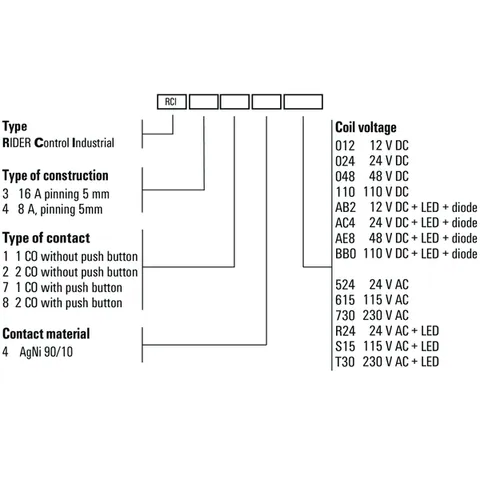

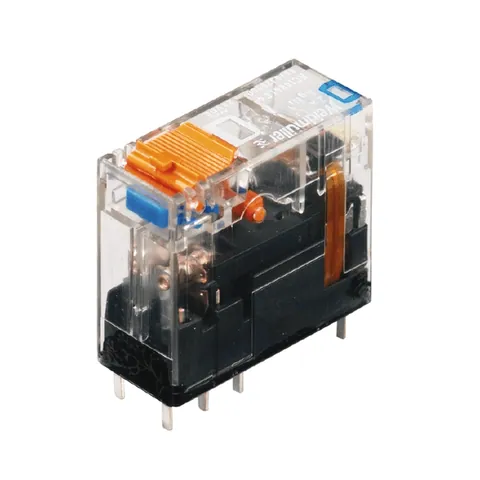

RIDERSERIES RCI, Relay, Number of contacts: 2 CO contact with test button AgNi 90/10, Rated control voltage: 24 V DC, Continuous current: 8 A, Plug-in connection- Part Number
- 8870320000
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 10 pcs.In-StockUpdated at: 22-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 340 Parts In-Stock from 7 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (6)
Weidmuller
8870320000
- Condition:
- New Surplus
- Available:
- 16 pcs.In-StockUpdated at: 21-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Weidmuller
8870320000
- Condition:
- New Surplus
- Available:
- 5 pcs.In-StockUpdated at: 22-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Weidmuller
8870320000
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 21-10-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Weidmuller
8870320000
- Condition:
- New Surplus
- Available:
- 11 pcs.In-StockUpdated at: 22-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
1
Weidmuller
8870320000
- Condition:
- New Surplus
- Available:
- 79 pcs.In-StockUpdated at: 22-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€4.00
General Data
- Test button
- yes (loackable, just when removing the detent lock)
- Mechanical switch position indicator
- Yes
- Colour
- Transparent
- UL 94 flammability rating
- V-2
Approvals
- Approvals
- CE, CSA, cURus, EAC, VDE
- ROHS
- Conform
- UL File Number Search
- E224238
Dimensions And Weights
- Width
- 13 mm
- Width (inches)
- 0.512 inch
- Height
- 29 mm
- Height (inches)
- 1.142 inch
- Depth
- 26.7 mm
- Depth (inches)
- 1.051 inch
- Net weight
- 18.672 g
Connection Data
- Wire connection method
- Plug-in connection
- Pitch in mm (P)
- 5 mm
Rated Data Ul
- Certificate No. (cURus)
- E224238
Contact Data
- Contact type
- 2 CO contact with test button (AgNi 90/10)

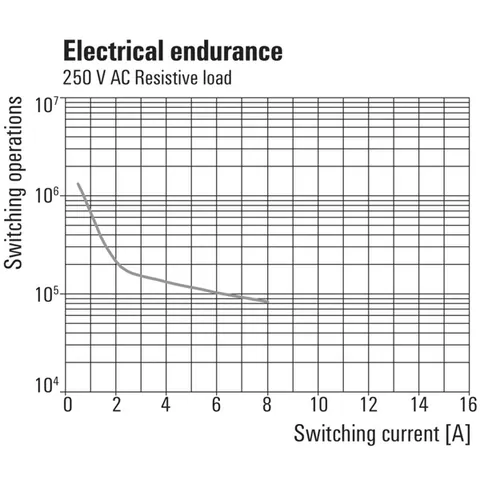

- Mechanical service life
- AC coil 5 x 106 switching cycles, DC coil 10 x 106 switching cycles
Input
- Rated control voltage
- 24 V DC
- Rated current DC
- 16.7 mA
- Power rating
- 400 mW

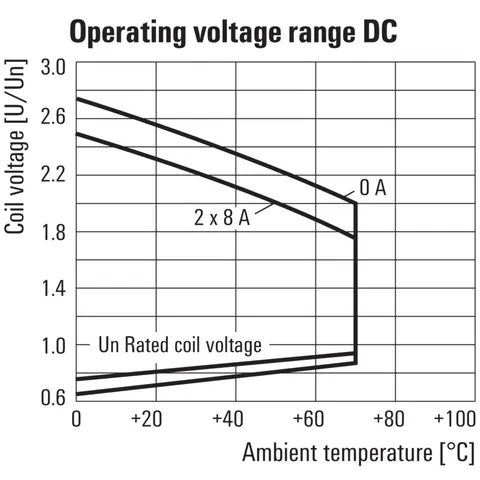

- Pull-in/drop-out voltage, typ.
- 16.8 V / 2.4 V DC
- Coil resistance
- 1440 Ω ± 10 %
- Status indicator
- Green LED
- Protective circuit
- Free-wheeling diode
Classifications
- ETIM 6.0
- EC001437
- ETIM 7.0
- EC001437
- EClass 9.0
- 27-37-16-01
- EClass 9.1
- 27-37-16-01
- EClass 10.0
- 27-37-16-01
- UNSPSC
- 30-21-19-17
Output
- Rated switching voltage
- 240 V AC
- Max. switching voltage, AC
- 400 V

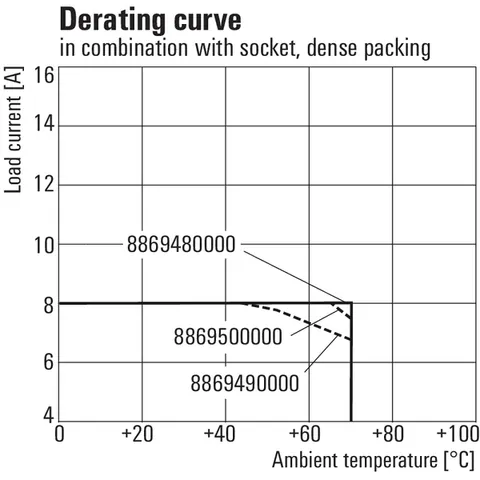

- Continuous current
- 8 A
- Inrush current
- 15 A / 4 s
- AC switching capacity (resistive), max.
- 2000 VA

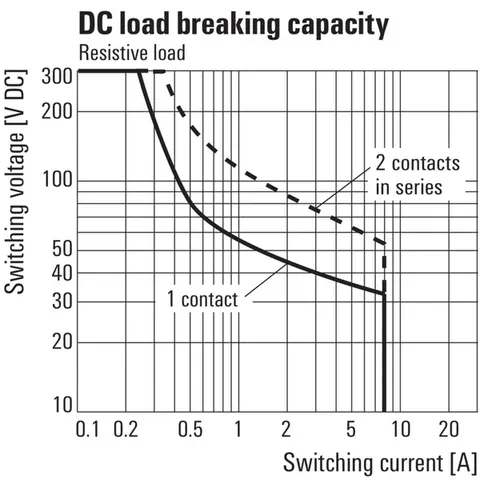

- DC switching capacity (resistive), max.
- 192 W @ 24 V
- Switch-on delay
- ≤ 10 ms
- Switch-off delay
- ≤ 6 ms
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
- Max. switching frequency at rated load
- 0.1 Hz
Insulation Coordination
- Rated voltage
- 250 V
- Surge voltage category
- III
- Pollution severity
- 2
- Insulating material group
- IIIa
- Dielectric strength, Input/Output
- 5 kVeff / 1min
- Creepage and clearance distance input – output
- ≥ 8 mm
- Dielectric strength of neighbouring contacts
- 2.5 kVeff / 1 Min.
- Dielectric strength of open contact
- 1 kVeff / 1 min
- Impulse withstand voltage
- 5 kV (1.2/50 µs)
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
- Operating temperature
- -40 °C...70 °C
- Storage temperature
- -40 °C...85 °C
Further Details Of Approvals / Standards
- Standards
- IEC 61810-1, UL508
- Certificate No. (CSA)
- 249409-2426937
- Certificate No. (cURus)
- E224238
