Weidmuller 8897240000

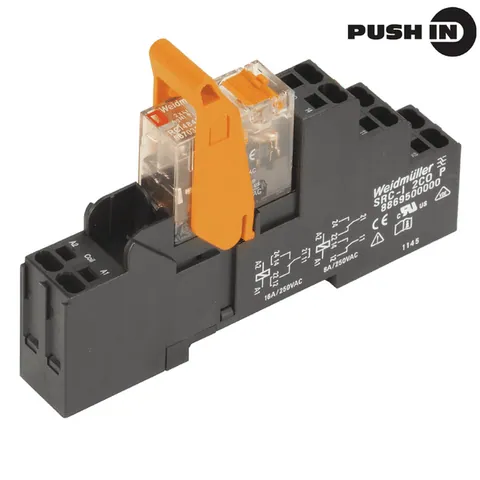

Relay Module 24VAC 2CO with Test Button
Product Description

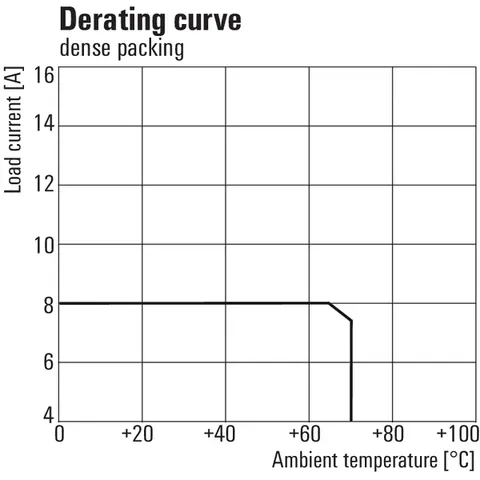

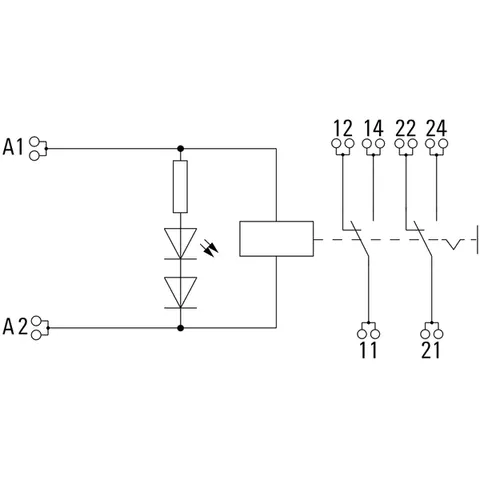

This relay module is designed for 24 V AC applications, offering 2 CO contacts that utilize AgNi 90/10 material. The module includes a test button and is rated for a continuous current of 8 A, ensuring reliable performance in demanding environments.

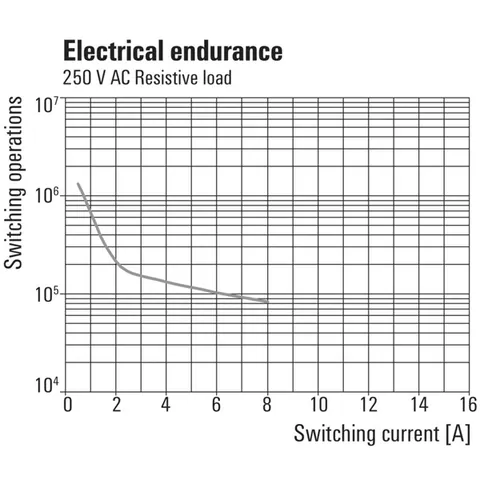

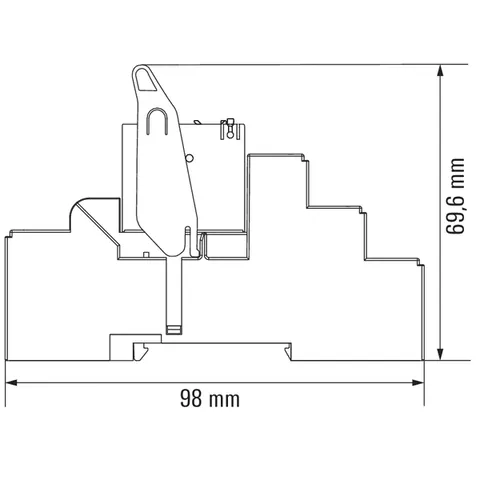

With compact dimensions of 15.8 mm in width, 98 mm in height, and 69.6 mm in depth, the unit is suitable for installation on a TS 35 rail. It features a mechanical service life rated for AC coils at 5 x 106 switching cycles and DC coils at 10 x 106 switching cycles, supporting long-term durability.

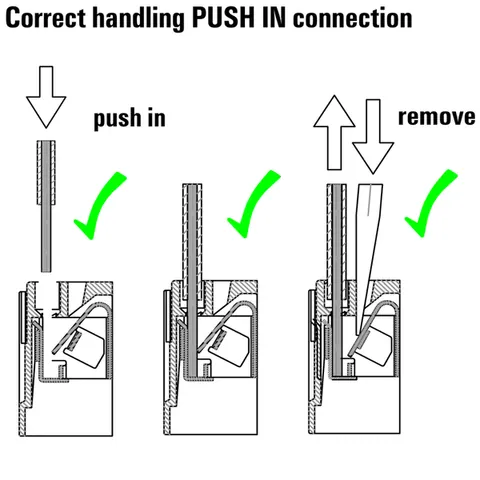

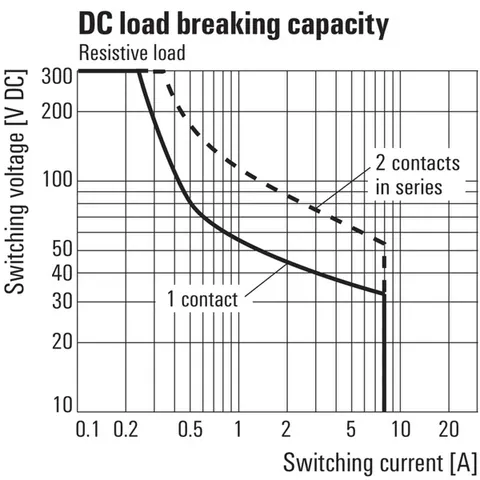

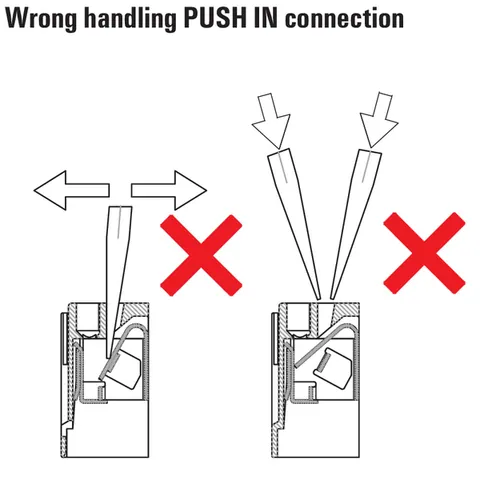

Connection is facilitated via a PUSH IN method, accommodating wire cross-sections from 0.75 mm² to 1.5 mm². The device is equipped with a red LED status indicator, allowing for easy monitoring of operational status. The rated switching voltage is 250 V AC, with a maximum switching voltage of 400 V and an inrush current capability of 15 A.
Compliance with various standards is ensured, including CE and DNV GL certifications. Environmental considerations are addressed, with operating temperatures ranging from -40 °C to 70 °C, and a humidity tolerance of up to 93% relative humidity. The product also meets insulation coordination standards, featuring a dielectric strength of 5 kV between input and output.
Designation Code: RCI
Need more information?
Offer details
- Offer from:
- Trusted supplier — Italy, member since 2022, 50–99 employees
- Availability:
- 16 pcs.Updated at: 09-10-2026In-Stock
- Warranty:
- 12 months
- Condition:
- New Surplus
Specifications
- Brand
- Weidmuller
- Rail
- TS 35
- Test button

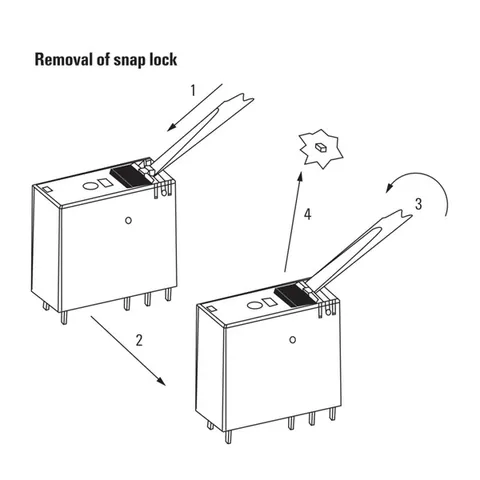

- yes (loackable, just when removing the detent lock)
- Mechanical switch position indicator
- Yes
- Colour
- black
- Approvals
- CE, DNV GL, EAC
- ROHS
- Conform
