Weidmuller 8920990000

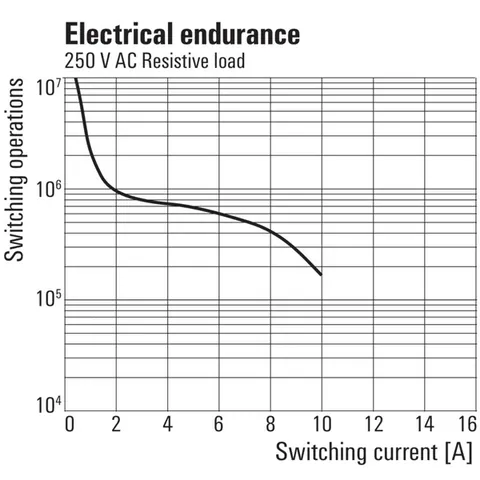

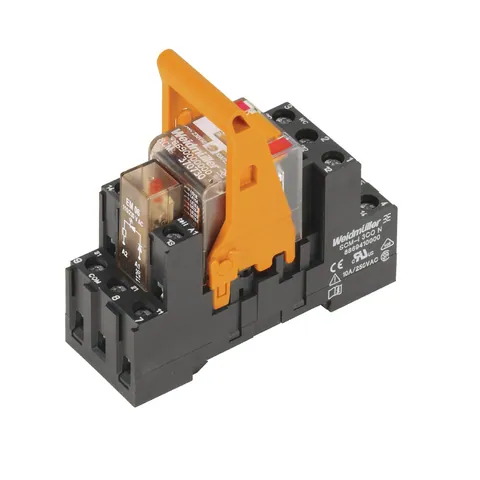

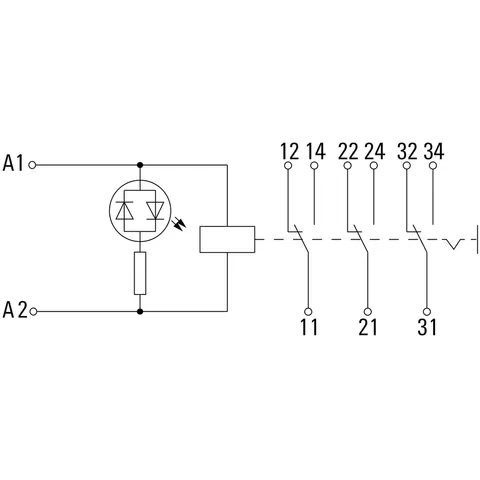

The RCMKIT-I 24VAC 3CO Relay Module features three changeover contacts (CO) and includes a lockable test button. Operating at a rated control voltage of 24 V AC, this module supports a continuous current of 10 A. The relay is equipped with a mechanical service life rated for 20 million switching cycles for AC coils and 30 million for DC coils, ensuring reliable performance.

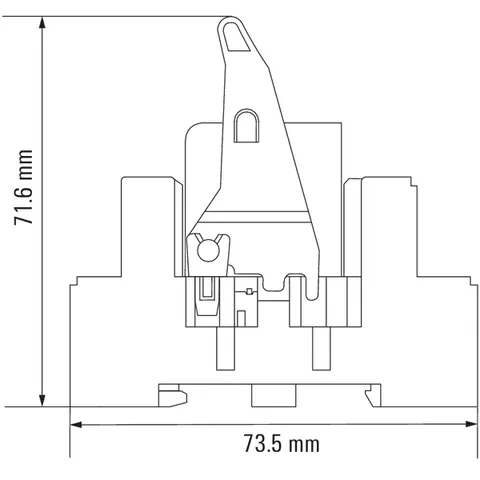

Constructed for mounting on a TS 35 rail, the module measures 27.2 mm in width, 73.5 mm in height, and 71.6 mm in depth, with a net weight of 100.2 g. The connection utilizes a screw method with a clamping range suitable for wire cross-sections from 1 mm² to 2.5 mm². The device allows for a maximum switching voltage of 400 V AC and is capable of handling inrush currents up to 20 A for brief periods.

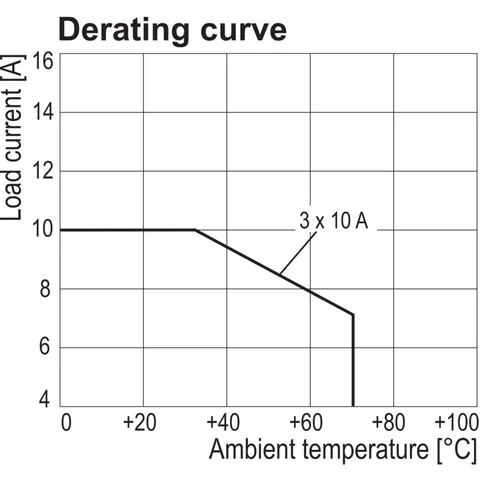

Compliance with international standards is assured, with approvals including CE and DNV GL, and conformance to RoHS regulations. The module operates effectively within a temperature range of -40 °C to 70 °C and maintains functionality in environments with up to 93% relative humidity. The protection degree is rated at IP20, suitable for industrial applications.

This product carries the Designation Code RCMKIT-I and adheres to multiple classifications including ETIM 6.0 and EClass 9.0, ensuring compatibility across various systems.
