Weidmuller 8957030000
RCM270AC4 Relay
Product Description

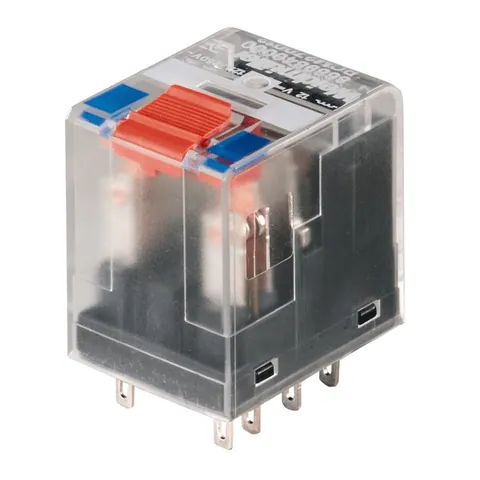

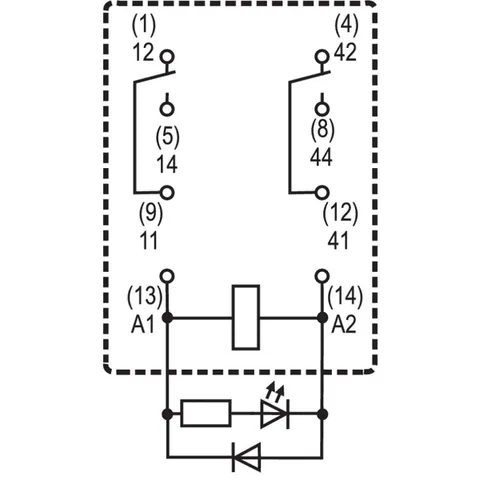

The RCM270AC4 Relay is designed with two CO contacts and includes a test button made of AgNi 90/10 material. It supports a rated control voltage of 24 V DC and allows for a continuous current of up to 12 A. The relay is equipped with a plug-in connection method for easy installation.

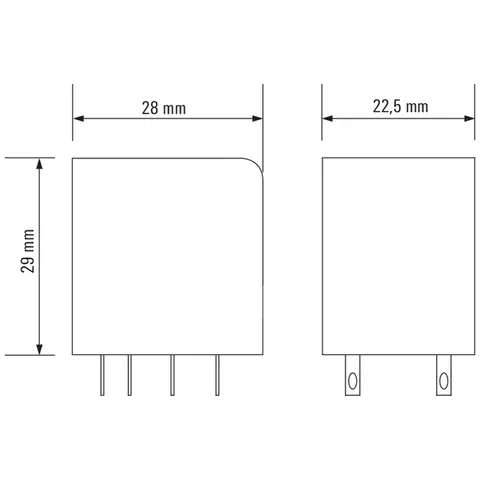

In terms of dimensions, the relay measures 22.5 mm in width, 28 mm in height, and 29 mm in depth, with a net weight of 29.4 g. Its transparent color allows for visibility of internal mechanisms, while a mechanical switch position indicator enhances operational transparency. The device is compliant with several approval standards, including CE, CSA, and UL, and has a UL File Number E224238.

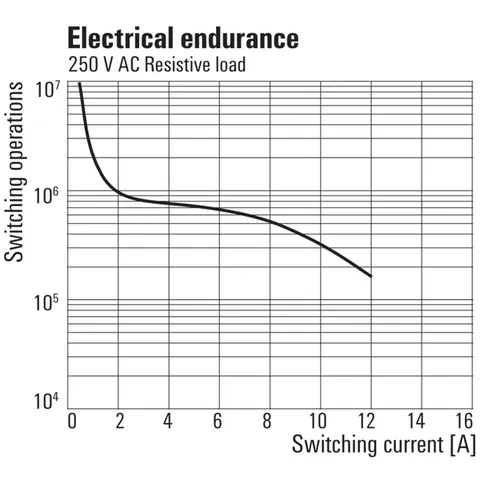

Operationally, it has a mechanical service life of 20 million switching cycles for AC coils and 30 million for DC coils. The relay operates efficiently within an ambient temperature range of -40 °C to 70 °C and can withstand a storage temperature range of -40 °C to 85 °C. The insulation coordination includes a rated voltage of 250 V and a surge voltage category of III, with a protection degree of IP20.
The RCM270AC4 Relay is suitable for various industrial applications, providing reliable performance with a switch-on delay of ≤ 15 ms and a switch-off delay of < 20 ms. Its robust construction and compliance with IEC 61810-1 and UL508 standards ensure dependable operation in demanding environments.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Czechia, member since 2023, 100–499 employees
- Availability:
- On requestLead time to be confirmed
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Test button
- yes (lockable)
- Mechanical switch position indicator
- Yes
- Colour
- Transparent
- UL 94 flammability rating
- V-2
- Approvals
- CE, CSA, cURus, EAC, VDE
- ROHS
- Conform
Available Offers
(8)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier CzechiaTrusted supplier — member since 2023, 100–499 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier LatviaTrusted supplier — member since 2024, 20–49 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time: 88 days | Supplier NetherlandsTrusted supplier — member since 2021 | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PortugalTrusted supplier — member since 2022, 10–19 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier PolandTrusted supplier — member since 2021, 50–99 employees | Warranty 12 months | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Latvia
Netherlands
Portugal
Poland
ItalyOffer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Weidmuller 8957030000, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 24-04-2025
