ABB 2TLA020054R0700

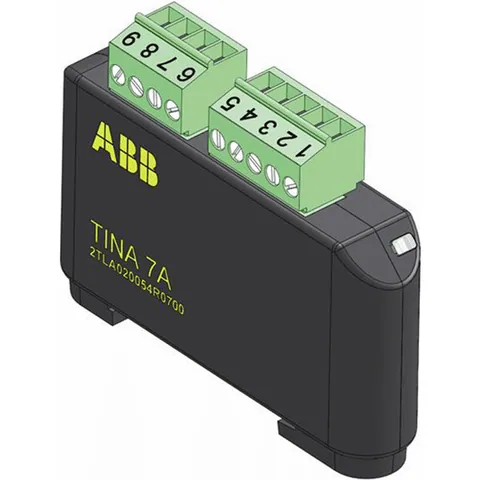

The DYNlink Adapter Unit TINA 7A is designed for integrating devices like emergency stop buttons and key switches into the DYNlink system. It is mounted directly on a DIN rail within electrical cabinets, ensuring that the connected safety devices are housed in the same enclosure. The unit allows for simple electrical connections through detachable terminal blocks.

With a rated operational voltage of 24 V DC and a control supply voltage of 24 V DC, the adapter supports various Pluto models, including Pluto AS-i v2 and Pluto B20 v2. Its compact dimensions measure 13 mm in depth, 46 mm in height, and 62 mm in width, with a net weight of 0.035 kg. The adapter is constructed from plastic and features a black color finish, providing durability and compliance with protection class IP67, allowing operation in environments with ambient temperatures ranging from -10 to 55 °C.

This device adheres to RoHS standards in accordance with EU Directive 2011/65/EU, ensuring it meets stringent environmental regulations. The TINA 7A is suitable for business-to-business applications and classified under WEEE Category 5, indicating it is small equipment with no external dimension exceeding 50 cm.

For further technical details, the data sheet reference is 2TLC010084D0201.
