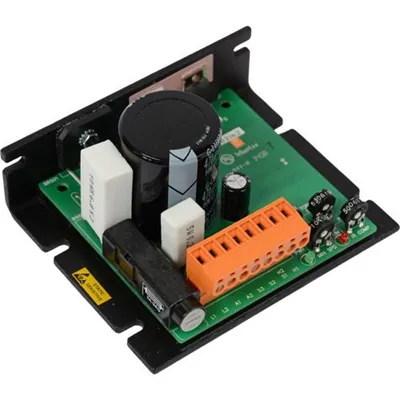

American Control Electronics PWP100-2-QDT

The PWP Series PWP100-2-QDT provides an economical and compact solution for applications utilizing Pulse Width Modulation technology. The nearly pure DC voltage output enhances the operational efficiency of permanent magnet DC motors, resulting in quieter and cooler performance.

This model features a 1.05 form factor of the DC output, which extends the lifespan of motor brushes and increases torque across the entire speed range. Users can easily calibrate the controller through a comprehensive set of adjustments, including Maximum Speed, Current Limit, and IR Compensation. It is capable of accommodating motors ranging from 1/100 to 1 HP.

Due to the advantages of PWM over traditional SCR technology, the PWP100-2-QDT is an optimal choice for applications focused on prolonging motor life. This unit operates within an input voltage range of 115 VAC and provides an adjustable output voltage between 0 to 90 VDC, with a maximum current rating of 2 ADC.
