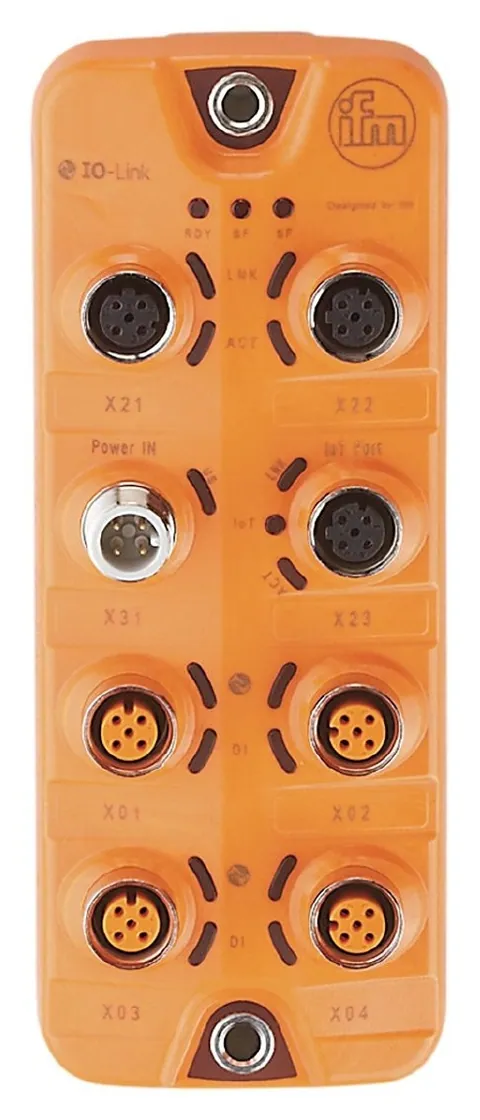

IFM AL1304

This IO-Link master features a PROFINET interface, enabling effective separation between automation networks and IT networks. It supports the connection of up to four IO-Link devices, allowing for comprehensive data communication. The device is designed for the reliable transmission of machine data, process parameters, and diagnostic data to controllers.

With an operating voltage range of 20 to 30 V DC and a maximum current load of 3.6 A, it operates efficiently under various conditions. The unit is equipped with eight configurable digital inputs and four digital outputs, with a maximum current load of 300 mA per output, ensuring robust connectivity and control capabilities.

Designed for industrial use, the housing is constructed to withstand harsh environments, with an IP67 protection rating. This ensures durability and resilience against dust and moisture. The ambient temperature range for operation is between -25°C and 60°C, and it can be stored at temperatures from -25°C to 85°C. Compliance with multiple EMC standards and rigorous shock and vibration tests ensures reliable performance.

For further information, refer to the operating instructions. The designation code for this model is IO-Link Master DL PN 4P IP67.
