IFM AL1326

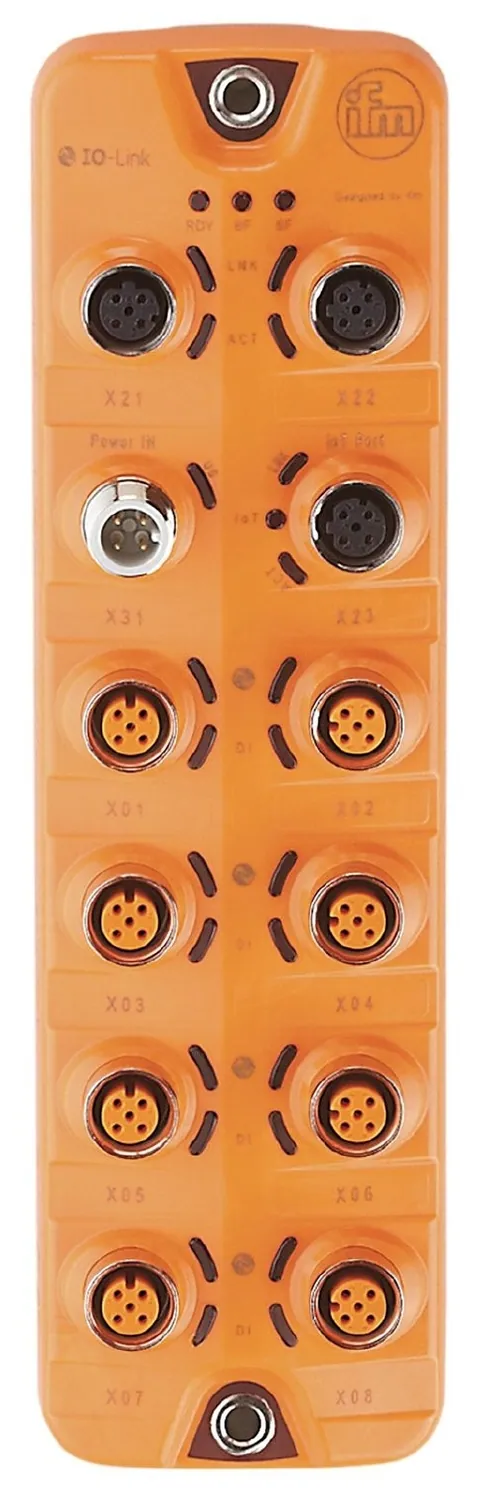

The IO-Link Master DL EIP 8P IP67 provides a vital interface for connecting up to eight IO-Link devices, ensuring effective communication within industrial environments. It features a compact rectangular housing constructed from PA orange, designed to withstand harsh conditions with a protection rating of IP67.

This device operates within a voltage range of 20 to 30 V DC and has a maximum current load of 3.6 A. It supports 16 configurable digital I/O, including 16 digital inputs and 8 digital outputs, with each output capable of handling a maximum current of 300 mA and designed to be short-circuit proof.

Communication is facilitated through Ethernet and IO-Link, with a transmission standard of 10Base-T and 100Base-TX at rates of 10 MBit/s and 100 MBit/s, respectively. The product is equipped with a separate MQTT JSON interface for enhanced data management.

Operating under ambient temperatures from -25°C to 60°C, it can also withstand a maximum relative humidity of 90%. The device meets various EMC standards and has been tested for shock and vibration resistance, ensuring reliability in demanding applications. For more detailed information, refer to the operating instructions.
