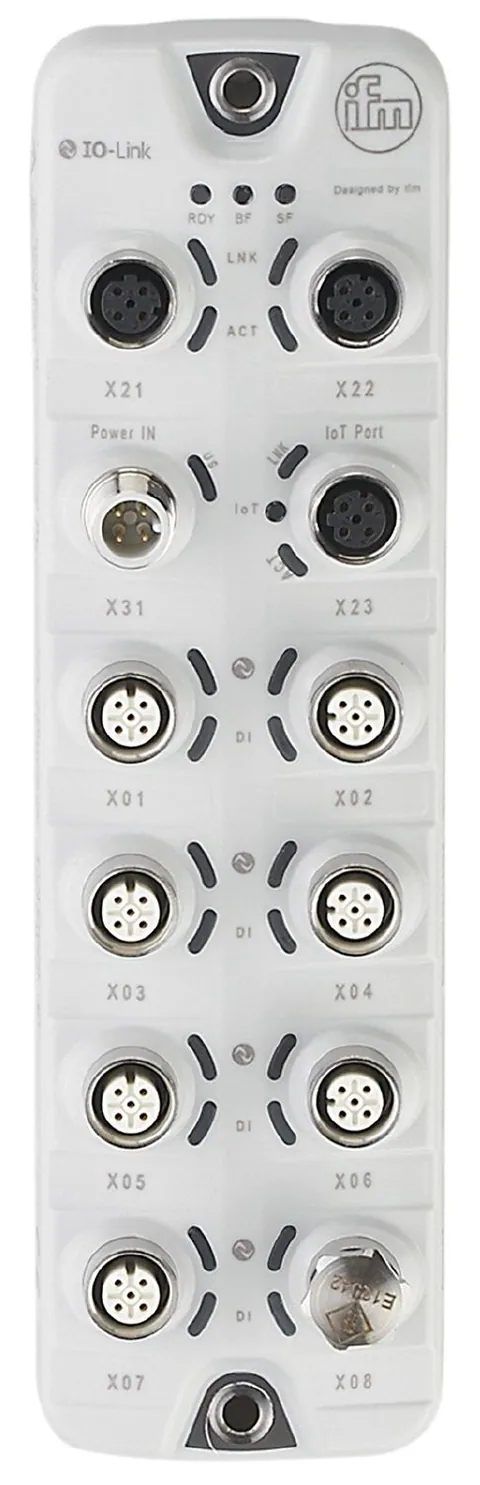

IFM AL1327

This device serves as an IO-Link master with EtherNet/IP connectivity, allowing for the separation of automation networks from IT networks. It enables reliable transmission of machine data, process parameters, and diagnostic information to the controller. The IO-Link Master DL EIP 8P IP69K supports connections for up to eight IO-Link devices, making it suitable for various industrial applications.

Designed to meet the stringent requirements of the food and beverage industry, it features a high protection rating. The operating voltage ranges from 20 to 28 V DC, with a total current load capacity of 3.6 A. The device provides 16 configurable inputs and outputs, including 16 digital inputs and 8 digital outputs, ensuring versatility in setup and operation.

Communication interfaces include Ethernet and IO-Link, with transmission standards of 10Base-T and 100Base-TX, supporting transmission rates of 10 MBit/s and 100 MBit/s. The device is capable of implementing secure protocols such as HTTPS and supports various network topologies like line and ring.

Operating conditions are robust, with an ambient temperature range from -25 to 60 °C and a maximum storage temperature of -25 to 85 °C. It is protected against dust and water ingress with an IP69K rating, suitable for demanding environments.
