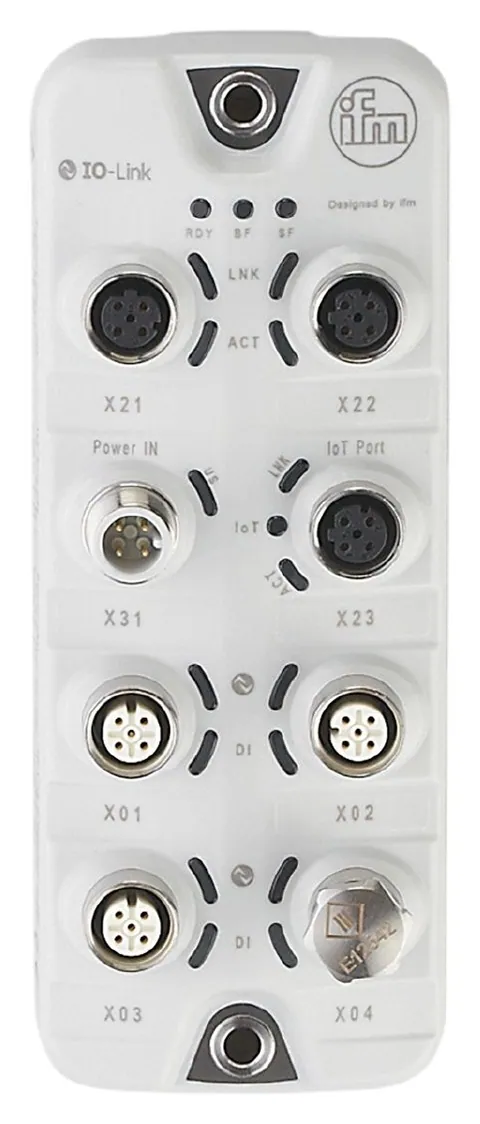

IFM AL1325

The IO-Link Master DL EIP 4P IP69K serves as a crucial interface between automation networks and IT networks, enabling the reliable transfer of machine data, process parameters, and diagnostic information to controllers. This device features an EtherNet/IP interface alongside a distinct MQTT JSON interface, ensuring versatile communication capabilities.

Designed for hygienic applications, it supports the connection of up to four IO-Link devices. The operating voltage ranges from 20 to 28 DC, with a total current load capacity of 3.6 A. The device includes eight configurable inputs and outputs, comprising four digital inputs and four digital outputs, all of which are protected against short circuits.

With a robust construction, the IO-Link Master is rated for operation in environments with ambient temperatures from -25 °C to 60 °C and can withstand high humidity levels of up to 90%. Its IP69K rating ensures durability in the food and beverage industry, while the housing is made from PA grey and stainless steel (316L/1.4404), providing additional resistance to chemical media.

This device supports various communication standards, including 10Base-T and 100Base-TX, with a transmission rate of 10 MBit/s and 100 MBit/s. It is compliant with numerous EMC and shock resistance standards, ensuring reliability and longevity in demanding applications.
