Schneider Electric LC1D65008P7
IEC Contact Relay, TeSys Deca, Non-reversing, 80A Resistive, 4 Pole, 2 NO and 2 NC, 230VAC 50/60Hz Coil, Open Style
1 / 2

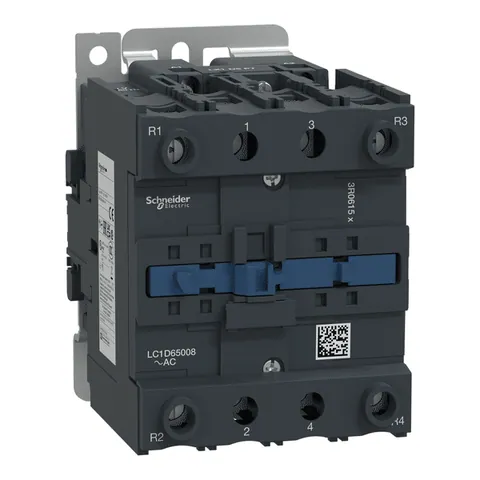

Imagen de catálogo del fabricante
Descripción del producto
Ciclo de vida:
The IEC Contact Relay, TeSys Deca, is a versatile component designed for seamless integration into control systems.
This relay can be employed to create motor starters for various applications. It is available in 13 contactor ratings, catering to inductive motor loads up to 150 full-load amps and resistive loads up to 200 amps.
This particular 4 pole IEC Contact Relay can be mounted on DIN rail or directly onto a panel. It comes with two normally open and two normally closed power contacts, each rated for an 80A resistive load.
The relay is equipped with a 230 VAC 50/60 Hz coil and features screw clamp terminals for load and auxiliary connections. An extensive range of accessories ensures it can meet the demands of most applications.
This IEC Contact Relay measures 5.00 inches in height, 3.35 inches in width, and 4.92 inches in depth. It weighs 3.20 lbs.
It is certified to UL, CSA, IEC, CCC, EAC, and Marine standards, and also complies with RoHS/REACh regulations, making it an environmentally friendly choice.
Enviar consulta
Métodos de pago:
Detalles de la oferta
- Mejor oferta de:
Proveedor de confianza — Rumanía, miembro desde 2023, 1–4 empleados- Disponibilidad:
- 1 piezaBajo pedidoActualizado en: 22-08-2026
- Condición:
- Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
El Vendedor es responsable de enviar el producto y facturar
Especificaciones
- Marca
- Schneider Electric
- Product Certifications
- DNV || GL || LROS (Lloyds register of shipping) || BV || GOST || CCC || RINA || CSA || UL
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
- Climatic Withstand
- IACS E10 exposure to damp heat
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- THIEC 60068-2-30
- Ip Degree Of Protection
- IP20 front face IEC 60529
