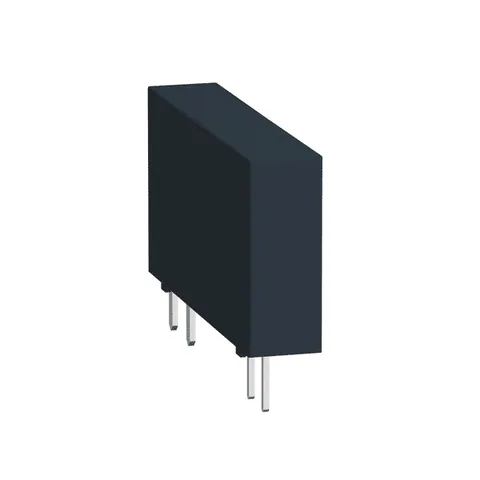

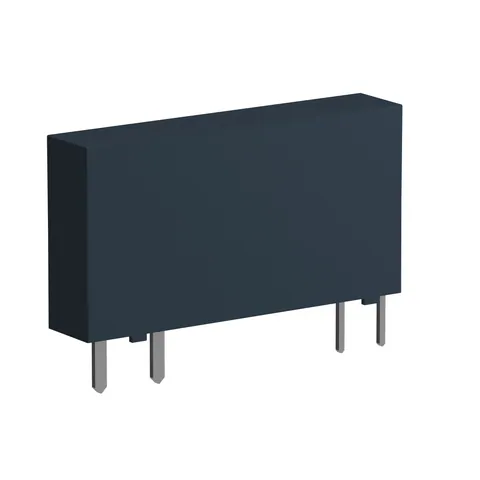

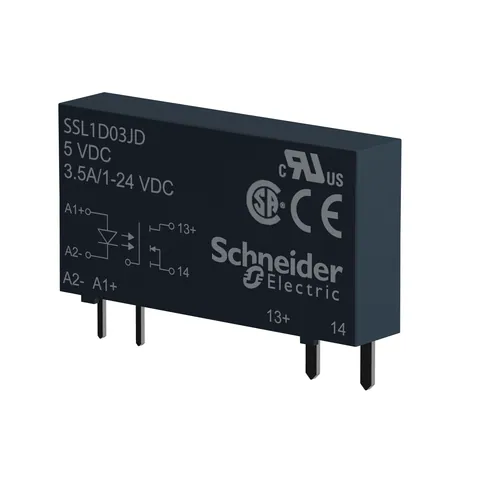

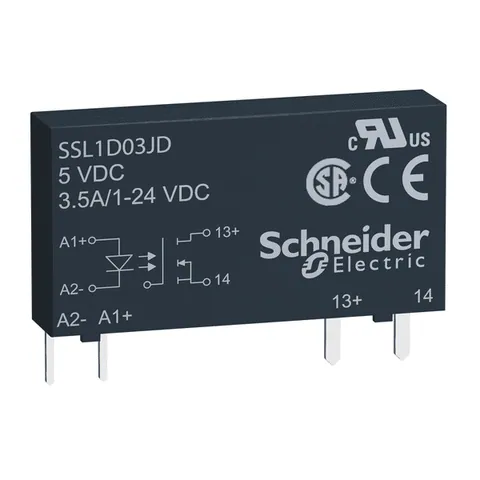

SSL1D03BD

Environment

Product Certifications

UL || CSA

Ambient Air Temperature For Operation

-20-80 °C

Pollution Degree

2

Dielectric Strength

2500 V for input/output

Marking

CE

Flame Retardance

V0 conforming to UL 94

Ambient Air Temperature For Storage

-20-85 °C

Complementary

[Uc] Control Circuit Voltage

15...30 V DC

Height

28 mm

Output Voltage

1...24 V DC

Mounting Support

socket

Maximum Voltage Drop

<0.5 V on-state

Response Time

0.35 ms (turn-on) || 0.08 ms (turn-off)

Surge Current

9 A 10 ms

Load Current

0.001-3.5 A

Net Weight

0.0041 kg

Minimum Switching Voltage

15 V DC turn-on

Maximum Leakage Current

0.001 mA off-state

Absolute Maximum Voltage

30 V DC

Input Current Limits

7-7 mA

Input Impedance

3500 Ohm

Maximum Switching Voltage

10 V DC turn-off

Solid State Output Type

Mosfet output || DC switching

Capacitance Unbalance

1.5 pF input/output

Line Rated Current

3.5 A

Width

5 mm

Overvoltage Category

III

Depth

15 mm

Maximum Operating Frequency

500 Hz

Specifications

Range Of Product

Harmony Solid State Relays

Output Switching Mode

DC switching

Product Or Component Type

solid state relay up to 10 A

Phase

1 phase

Device Short Name

SSL

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1405004EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

X

Circularity Profile

ENVEOLI1405004EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)
