Schneider Electric
VW3A7732
- Condición:
- Nuevos excedentes
- Disponible:
- 3 piezasEn stockActualizado en: 29-10-2024
- Oferta de:
Proveedor de confianza de Automa.Net- Entrega Estimada:
- Bajo pedido
- Garantía:
- 12 meses
1
€139.25
netSchneider Electric
VW3A7732
1 / 1
Descripción
Activo maduro

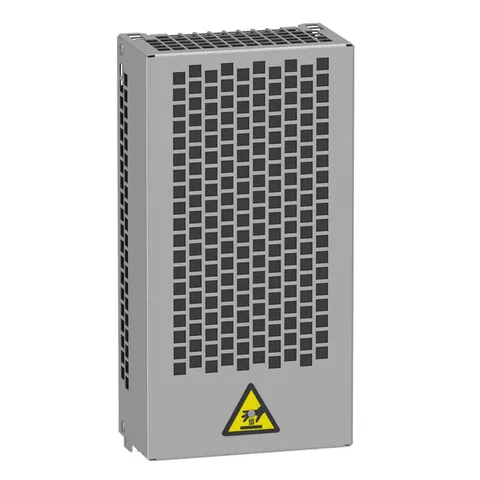

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 3kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.- Country of Origin
- DE
- Part Number
- VW3A7732
- Tariff Code
- 85332900
- EAN
- 3606480802263
- UNSPSC
- 26112105
Métodos de pago:
- Mejor oferta de:
Proveedor de confianza de Automa.Net- Disponibilidad:
- 28 piezasEn stockActualizado en: 30-04-2024
- Entrega Estimada:
- Bajo pedido
- Condición:
- Nuevo Precintado de Fábrica
Nuevo Precintado de Fábrica - Un artículo completamente nuevo, sin usar, sin abrir, sin daños, en su embalaje original sellado por el fabricante.
Un total de 32 Parts In-Stock de 3 Distributors
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía
Ofertas Disponibles (2)
Schneider Electric
VW3A7732
- Condición:
- Nuevos excedentes
- Disponible:
- 1 piezaEn stockActualizado en: 21-10-2024
- Oferta de:
- Proveedor de confianza de Automa.Net
- Entrega Estimada:
- Bajo pedido
1
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€68.64
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Ohmic Value
- 28 Ohm
- Product Or Component Type
- braking resistor
- Range Compatibility
- Altivar Machine ATV340 || Easy Altivar 310 || Altivar Process ATV900 || Altivar Machine ATV320 || Easy Altivar 310L
Complementary
- Height
- 345 mm
- Protection Type
- thermal protection via drive
- Net Weight
- 2.7 kg
- Electrical Connection
- terminal <= 10 mm² / AWG 8 drive
- Product Compatibility
- variable speed drive ATV320 15 kW 525...600 V || variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle || variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle || variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle || variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle || variable speed drive ATV320 7.5 kW 525...600 V || variable speed drive ATV930 15 kW 500...690 V light cycle || variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle || variable speed drive ATV930 25 hp 600 V light cycle || variable speed drive ATV320 7.5 kW 380...480 V || variable speed drive ATV320 3 kW 200...240 V || variable speed drive ATV320 11 kW 380...480 V || variable speed drive ATV320 11 kW 525...600 V || variable speed drive ATV930 20 hp 600 V light cycle || variable speed drive ATV930 18.5 kW 500...690 V light cycle || variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle || variable speed drive ATV340 11 kW 380...480 V light cycle || variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle || variable speed drive ATV310 11 kW || variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle || variable speed drive ATV340 7.5 kW 380...480 V light cycle || variable speed drive ATV320 2.2 kW 200...240 V
- Duty Cycle
- light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle || light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Width
- 175 mm
- Depth
- 100 mm
- Average Power Available
- 0.3 kW 50 °C
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20
