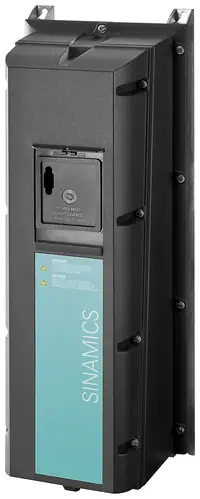

Siemens 6SL3223-0DE25-5BG1

The PM230 Power Module is designed for industrial applications, providing a nominal output power of 5.5 kW. It operates on a 3-phase input voltage range of 380-480 V with a frequency tolerance of ±10% and supports an output frequency of up to 550 Hz. The module features a built-in Class B filter and achieves a degree of protection rated at IP55 / UL Type 12, ensuring reliable performance in various environments.

Operating within an ambient temperature range of -10 to +40 °C, the module's dimensions are 540 mm in height, 180 mm in width, and 249 mm in depth. The maximum output current is rated at 13.2 A, and it is capable of handling overloads at specific durations: 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. The PM230 is approved for use without a control unit and is compatible with CU230P-2 firmware version V4.3.2.
