Siemens
6AV2145-6KB10-0AS0
SIMATIC HMI TP1000F MOBILE RO
- Termin płatności do 90 dni od 500+ dostawców.
- Rabaty na odsprzedaż do 40%!
€2,987.17
1
Metody płatności:
Łącznie 7 części w magazynie od 23 dostawców
Stan produktu:
Oferta z czasem realizacji przez producenta
Wysyłka:Na zapytanie
Najlepsza cena:
€3,132.72
Tak, możemy naprawić!
Współpracujemy z ponad 120 firmami naprawczymi w Europie, aby uzyskać najlepszą ofertę.
Czas realizacji:Na zapytanie
Możesz naprawić 6AV2145-6KB10-0AS0 za:
€1,504.00
Opis
AktywnyZgodny z RoHS

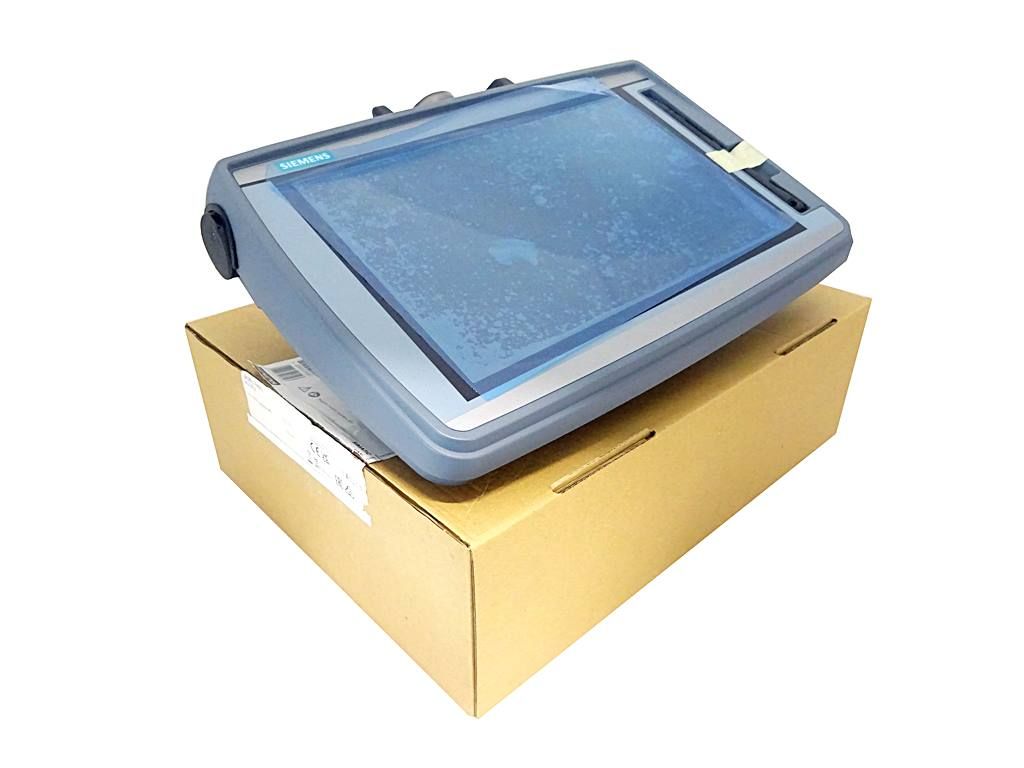

SIMATIC HMI TP1000F MOBILE RO 10.0 TFT display. 1280x800 pixels. 16 million colors. Touch operation. touch pen. 1x PROFINET/Industrial Ethernet interface. 1x multimedia card. 1x USB. no key-operated switch. acknowledgement button. 1 emergency stop/stop button with Remote OperateAdditional Information
- Part Number
- 6AV2145-6KB10-0AS0
- UPC
- 195125052062
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Mobile panel
- Class Code : EC001427
- Version : 7
Specifications
- Country of Origin
- DE
- Depth
- 91 mm
- Height
- 224 mm
- Width
- 307.5 mm
- With recipes
- true
- Type of display
- TFT
- Weight
- 1.6 kg/m²
- With touch screen
- true
- Supply voltage DC
- 19.2 V
- Screen diagonal
- 10.1 inch
- With colour display
- true
- Connection, pluggable
- true
- Number of system buttons
- 0
- Number of buttons with LED
- 0
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 1
- Number of online languages
- 32
- Degree of protection (IP)
- IP65
- Number of pixels, vertical
- 800
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Suitable for emergency stop
- true
- Number of pixels, horizontal
- 1280
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Suitable for safety functions
- true
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Supporting protocol for EtherNet/IP
- true
- Number of colours of the display
- 16777216
- Number of function buttons, programmable
- 0
- Process default value (input) possible
- true
- Useful project memory/user memory
- 12000 kByte
- Number of HW-interfaces industrial Ethernet
- 1
- With enabling button/emergency-stop switch
- true
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
- Max. height of fall (in accordance with IEC 60068-2-32)
- 1.2 m
