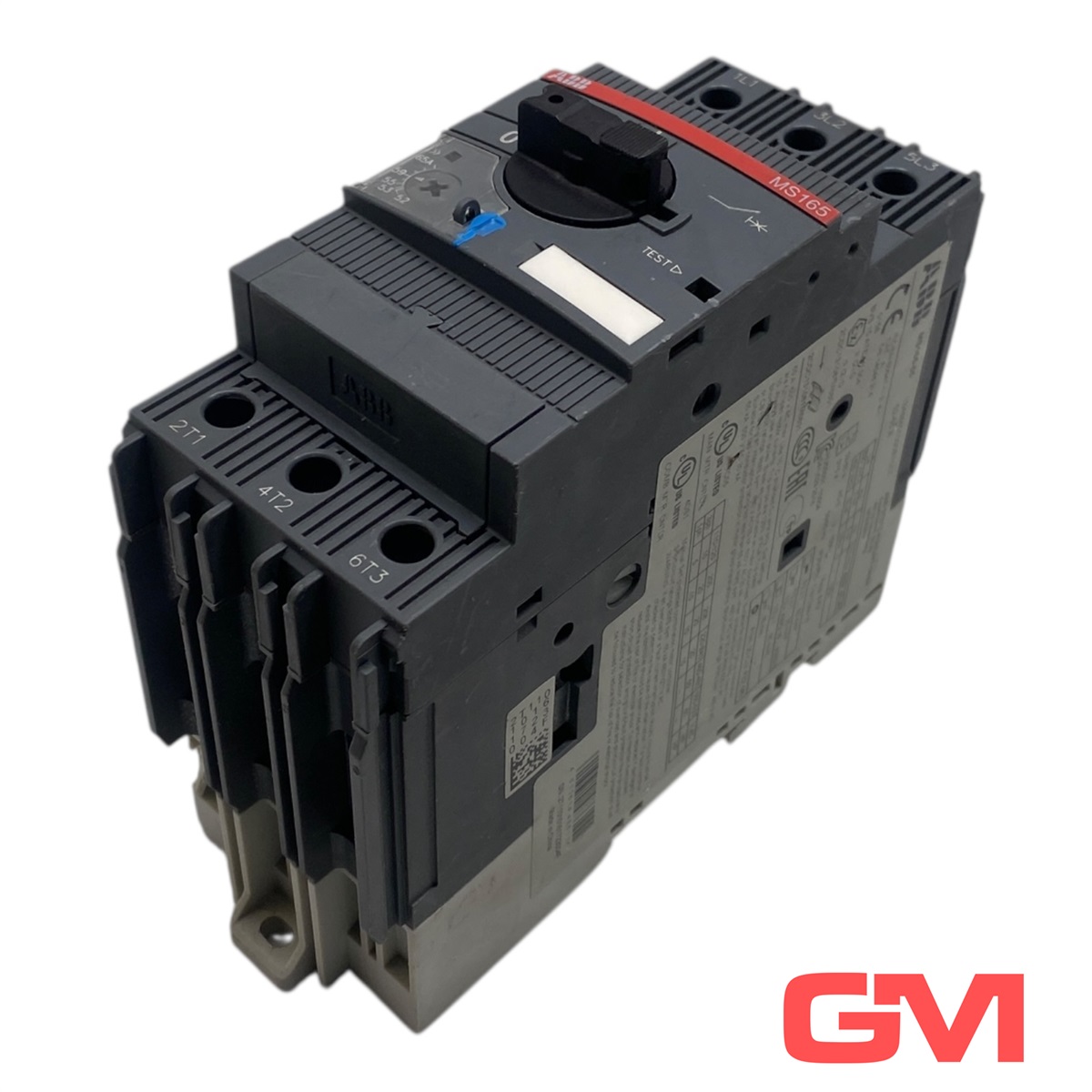

ABB 1SAM451000R1017MS165-65 Manual Motor Starter 52 ... 65 A
1 / 2
Reference Image - Not actual item!
Offer Description
MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10.MS165-65 Manual Motor Starter 52 65 A ABB 1SAM451000R1017
Product Description
MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10.
Product Details
- Brand
- ABB
- Country of Origin
- CN
- Part Number
- 1SAM451000R1017
- Tariff Code
- 85369095
- EAN
- 4013614486111
- UNSPSC
- 39121521
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Motor protection circuit-breaker
- Class Code : EC000074
- Version : 7
$257.80
excl. taxOffer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 3 pcs.In-StockUpdated at: 18-07-2025
- Warranty:
- 12 months
- Estimated Delivery:
- 25-30 July to United States
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Policies and Information
Shipping Information
Return & Refund Policies
14 days for return
Secure Payment Process
Warranty Policies
Dimensions
- Product Net Width
- 55 mm
- Product Net Height
- 142.65 mm
- Product Net Depth / Length
- 122.1 mm
- Product Net Weight
- 0.98 kg
Technical
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (230 V AC) 30 kA(250 V DC) 3 Poles in Series 100 kA(400 V AC) 30 kA(440 V AC) 30 kA(500 V AC) 20 kA(690 V AC) 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V AC) 50 kA(250 V DC) 100 kA(400 V AC) 50 kA(440 V AC) 45 kA(500 V AC) 20 kA(690 V AC) 8 kA
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 975 A
- Setting Range
- 52 ... 65 A
- Rated Operational Power AC-3 (Pe)
- (400 V) Three Phase 30 kW
- Rated Operational Power AC-3e (Pe)
- (400 V) Three Phase 30 kW
- Rated Operational Voltage
- Main Circuit 690 V ACMain Circuit 250 V DC
- Rated Operational Current (Ie)
- 65 A
- Rated Operational Current AC-3 (Ie)
- 65 A
- Rated Operational Current AC-3e (Ie)
- 65 A
- Rated Operational Current DC-5 (Ie)
- 65 A
- Rated Frequency (f)
- Main Circuit 50 HzMain Circuit 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Power Loss
- at Rated Operating Conditions per Pole 5.14 ... 8.02 W
- Number of Poles
- 3
- Conventional Free-air Thermal Current (Ith)
- Main Circuit 65 A
- Degree of Protection
- Housing IP20Main Circuit Terminals IP10
- Pollution Degree
- 3
- Electrical Durability
- 25000 cycle
- Mechanical Durability
- 50000 cycle
- Terminal Type
- Screw Terminals
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1/2x 1 ... 35 mm²Flexible with Insulated Ferrule 1/2x 1 ... 35 mm²Flexible 1/2x 1 ... 35 mm²Rigid 1/2x 1 ... 4 mm²Solid 1/2x 1 ... 4 mm²Stranded 1/2x 1 ... 50 mm²
- Tightening Torque
- Main Circuit 4 N·m
- Wire Stripping Length
- Main Circuit 16 mm
- Recommended Screw Driver
- Pozidriv 2
- Mounting Position
- 1 ... 6
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Minimum Mounting Distance
- Electrical Conductive Board, Horizontal - Up to 1000 V 1.5 mmElectrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm
- Actuator Type
- Rotary Handle
- Contact Position Indication
- ON / OFF / TRIP
- Standards
- CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-4-1
Classifications
- Object Classification Code
- F
- ETIM 5
- EC000074 - Motor protective circuit-breaker
- EClass
- V11.0 : 27370401
- IDEA Granular Category Code (IGCC)
- 4731 >> Manual Starters
- E-Number (Finland)
- 3707290
- E-Number (Sweden)
- 3110057
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °COperation Compensated -25 ... +60 °CStorage -50 ... +80 °C
- Ambient Air Temperature Compensation
- Yes
- Maximum Operating Altitude Permissible
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations acc. to IEC 60068-2-6
- mounted on DIN-rail: 4g / 3 ...150 Hzmounted on mounting plate: 5g / 3 ... 150 Hz5g / 3 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kAManual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 30 kA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Horsepower Rating UL/CSA
- (200 V AC) Three Phase 20 Hp(208 V AC) Three Phase 20 Hp(220 ... 240 V AC) Three Phase 20 Hp(440 ... 480 V AC) Three Phase 50 Hp(550 ... 600 V AC) Three Phase 60 Hp
- Full Load Amps Motor Use
- (200 V AC) Three Phase 62.1 A(208 V AC) Three Phase 59.4 A(220 ... 240 V AC) Three Phase 54 A(440 ... 480 V AC) Three Phase 65 A(550 ... 600 V AC) Three Phase 62 A
- Locked Rotor Amps
- (200 V AC) Three Phase 334 A(208 V AC) Three Phase 321 A(220 ... 240 V AC) Three Phase 290 A(440 ... 480 V AC) Three Phase 363 A(550 ... 600 V AC) Three Phase 348 A
- General Use Rating UL/CSA
- (600 V AC) 65 A
- Connecting Capacity Main Circuit UL/CSA
- Flexible 1/2x 16-0 AWGStranded 1/2x 16-0 AWG
- Tightening Torque UL/CSA
- Main Circuit 35 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Customs Tariff Number
- 85362090
