B&R 8V1010.00-2B&R Industrial Control Module
1 / 1

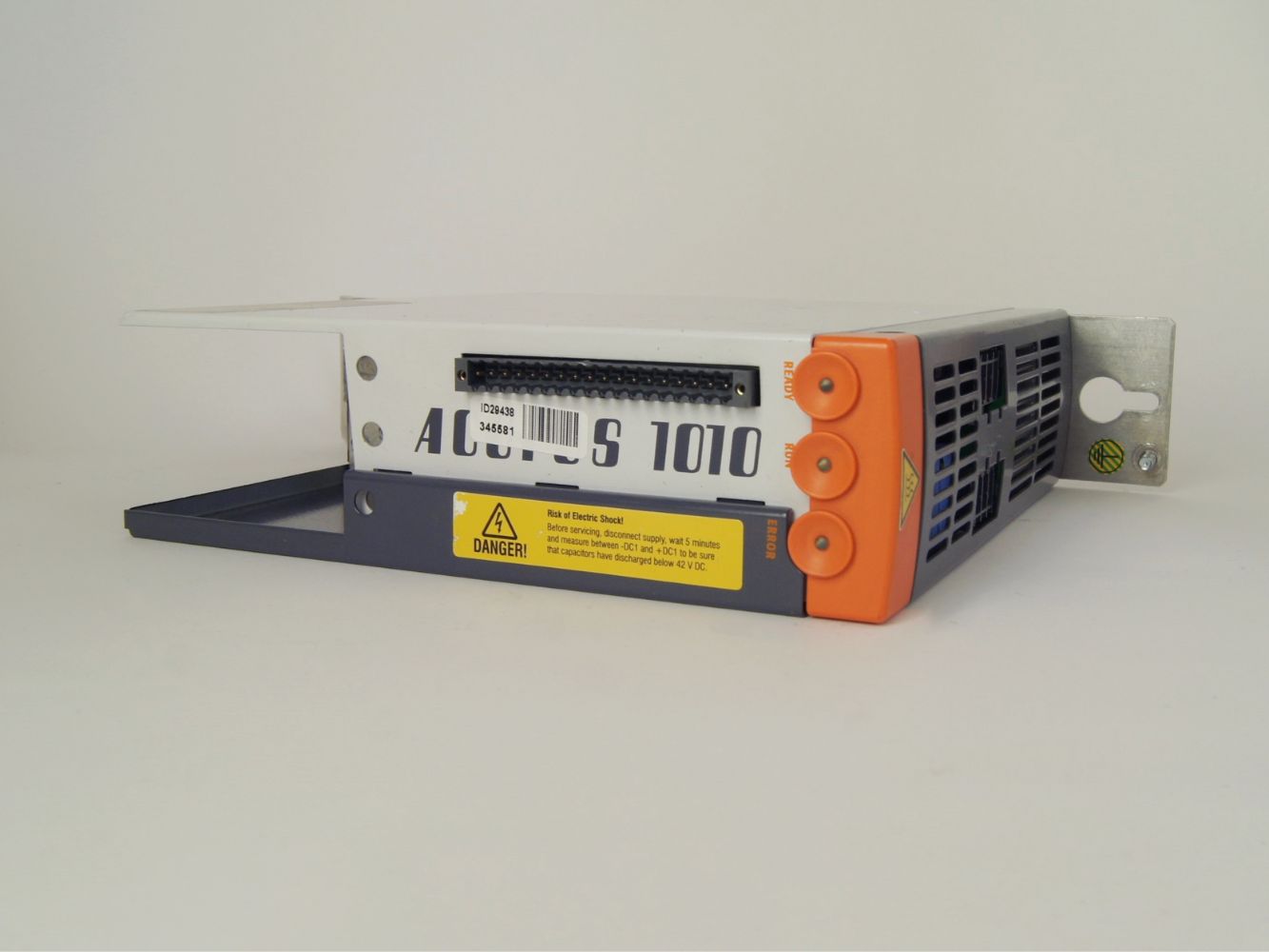

Reference Image - Not actual item!
Offer Description
B&R ACOPOS SERVO DRIVE, 3X 400-480 V, 1.0 A, 0.45 KW, LINE FILTER, INTEGRATED BRAKING RESISTOR AND ELECTRONIC SECURE RESTART INHIBIT | ✓ FREE WORLDWIDE SHIPPING ✓ 2 YEAR WARRANTY ✓ OVER 300.000 PRODUCTS IN STOCK
Product Description
The 8V1010.00-2 industrial automation product, manufactured by B&R, is an advanced component designed to enhance the performance and functionality of automated systems. This compact and reliable device features high-speed processing capabilities, making it ideal for applications requiring real-time data processing and control. The 8V1010.00-2 is equipped with a range of communication interfaces including Ethernet, USB, and serial communication, ensuring seamless integration with other components and systems. The product is also designed to withstand harsh industrial environments, with a rugged construction and high resistance to shock and vibration. The 8V1010.00-2 is an essential component for any industrial automation system, delivering superior performance, reliability, and functionality.
Key Features:
High-speed processing capabilities
Multiple communication interfaces (Ethernet, USB, serial)
Rugged construction with high resistance to shock and vibration
Perfect for:
Industrial automation systems
Real-time data processing applications
Harsh industrial environments
Product Details
- Brand
- B&R
- Country of Origin
- Austria
- Part Number
- 8V1010.00-2
- Tariff Code
- 85371091
- EAN
- 4000000000001
- UPC
- 4000000000001
- UNSPSC
- 32151705
≈
$440.09
excl. taxSupplier Price
€403.75
€475.00
Shipping from:
€80.00
Offer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 14-07-2025
- Warranty:
- 24 months
- Estimated Delivery:
- 23 July to United States
- Condition:
- Refurbished
Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Check other offers
| Country | Conditions | Qty | Price |
|---|---|---|---|
 | Used | 1 | ≈ $342.37 |
| Used | 1 | ≈ $395.67 |
| Refurbished | 1 | ≈ $466.52 |
 | Refurbished | 1 | ≈ $491.86 |
Used
≈
$342.37
Used
≈
$395.67
Refurbished
≈
$466.52
Refurbished
≈
$491.86
A total of 5 Parts In-Stock from 4 Distributors
Policies and Information
Shipping Information
Return & Refund Policies
14 days for return
Secure Payment Process
Warranty Policies
Available Offers
(4)B&R
- Available:
- 1 pc.In-StockUpdated at: 14-07-2025
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 21 July - 04 August to United States
- Warranty:
- 24 months
≈
$491.86
excl. taxSupplier Price
€451.25
Shipping from:
€120.00
B&R
- Available:
- 1 pc.In-StockUpdated at: 14-07-2025
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 18-24 July to United States
- Warranty:
- 24 months
≈
$342.37
excl. taxSupplier Price
€314.10
€349.00
Shipping from:
€140.00
B&R
- Available:
- 1 pc.In-StockUpdated at: 14-07-2025
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 21-24 July to United States
- Warranty:
- 3 months
≈
$395.67
excl. taxSupplier Price
€363.00
Yes, we can repair!
We work with over 120 repair companies in Europe to get you the best quote.
Lead time:On Request
You can repair 8V1010.00-2 for:
Send request for price
General Information
- B&R ID code
- 0x18D6
Slots for plug-in modules
- Quantity
- 3
Certifications
- CE
- Yes
- UKCA
- Yes
- Functional safety
- Yes
- UL
- cULus E225616
- KC
- Yes
Mains connection
- Permissible network configurations
- TT, TN
- Mains input voltage
- 3x 400 VAC to 480 VAC ±10%, 3x 230 VAC ±10%
- Frequency
- 50 / 60 Hz ±4%
- Installed load
- Max. 1.35 kVA
- Inrush current
- 2 A (at 400 VAC)
- Switch-on interval
- >10 s
- Integrated line filter per EN 61800-3, category C3
- Yes
- Power dissipation at device nominal power without braking resistor
- 80 W
DC bus connection
- DC bus capacitance
- 165 µF
24 VDC power supply
- Input voltage
- 24 VDC +25% / -20%
- Input capacitance
- 5600 µF
- Current consumption
- Max. 1.47 A + Current for motor holding brake
Motor connection
- Quantity
- 1
- Continuous current
- 1 Aeff
- Reduction of continuous current depending on ambient temperature
- No reduction
- Peak current
- 2.8 Aeff
- Nominal switching frequency
- 10 kHz
- Possible switching frequencies
- 5 / 10 / 20 kHz
- Insulation stress of the connected motor per IEC TS 60034-25:2004
- Limit value curve A
- Max. motor line length
- 15 m
Protective measures
- Overload protection
- Yes
- Short-circuit and ground fault protection
- Yes
- Max. output frequency
- 598 Hz
Terminal connection cross section
- Flexible and fine-stranded wires
- 0.25 to 4 mm²
Approbation data
- UL/C-UL-US
- 30 to 10 AWG
- CSA
- 28 to 10 AWG
Motor holding brake connection
- Response threshold for open-circuit monitoring
- Approx. 245 mA
- Max. output current
- 1.3 A
- Max. number of switching cycles
- Unlimited since implemented electronically
Braking resistor
- Peak power output
- 2 kW
- Continuous power
- 130 W
Limit switch and reference inputs
- Quantity
- 3
- Circuit
- Sink
- Input voltage
- Nominal 24 VDC, Maximum 30 VDC
- Switching threshold
- Low <5 V, High >15 V
- Input current at nominal voltage
- Approx. 4 mA
- Switching delay
- Max. 2.0 ms
Enable inputs
- Quantity
- 1
- Circuit
- Sink
- Input voltage
- Nominal 24 VDC, Maximum 30 VDC
- Input current at nominal voltage
- Approx. 30 mA
- Switching threshold
- Low <5 V, High >15 V
- Switching delay
- Enable 0 → 1, ready for PWM Max. 100 µs, Enable 1 → 0, PWM off Max. 2.0 ms
Trigger inputs
- Quantity
- 2
- Circuit
- Sink
- Input voltage
- Nominal 24 VDC, Maximum 30 VDC
- Switching threshold
- Low <5 V, High >15 V
- Input current at nominal voltage
- Approx. 10 mA
- Switching delay
- Rising edge 52 µs ±0.5 µs (digitally filtered), Falling edge 53 µs ±0.5 µs (digitally filtered)
Electrical properties
- Discharge capacitance
- 550 nF
Energy efficiency (IE classification)
- Power dissipation relative to continuous apparent power
- IE2 (10,25) 6.9%, IE2 (50,25) 6.9%, IE2 (10,50) 6.9%, IE2 (50,50) 6.9%, IE2 (90,50) 7%, IE2 (10,100) 7.1%, IE2 (50,100) 7.2%, IE2 (90,100) 7.3%
- Nominal losses in standby mode
- 12.5 W
Operating conditions
- Permissible mounting orientations
- Hanging vertically, Horizontal, face up
- Installation elevation above sea level
- Nominal 0 to 500 m, Maximum 2000 m
- Pollution degree per EN 61800-5-1
- 2 (non-conductive pollution)
- Overvoltage category per EN 61800-5-1
- II
- Degree of protection per EN 60529
- IP20
Ambient conditions
- Temperature
- Operation Nominal 5 to 40°C, Maximum 55°C, Storage -25 to 55°C, Transport -25 to 70°C
- Relative humidity
- Operation 5 to 85%, Storage 5 to 95%, Transport Max. 95% at 40°C
Mechanical properties
- Dimensions
- Width 58.5 mm, Height 257 mm, Depth 220 mm
- Weight
- 2.5 kg
