American Control Electronics RGA403-10

RGA Series

1 / 1
American Control Electronics RGA403-10 RGA Series — VFDs & Frequency Converters

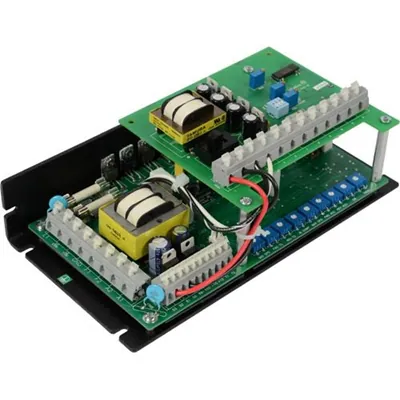

Manufacturer catalogue image

Product Description

The RGA403-10, part of the RGA series of 4Q drives, is engineered for applications requiring efficient management of overhauling loads and frequent directional changes. This model features a chassis enclosure and supports a maximum current of 10 ADC, with input voltage options of 115 or 230 VAC.

Providing output voltage ranges from 0 to 90 VDC and up to 180 VDC, the drive is suitable for a variety of power requirements, accommodating power ranges from 1/8 to 2 HP (0.09 to 1.5 kW). The system supports field supply for shunt-wound motors, enhancing its versatility.

Installation is facilitated by on-board fusing and cage clamp terminals for both power and logic connections. The drive can be configured with a factory-installed isolation module, and its regenerative braking capabilities enable efficient energy recovery during operation, making it well-suited for diverse environments.

  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign Up
Send request for price
Send Inquiry
Payment methods:
Request a Quote and we will send you information on availability and price.

Specifications

Brand
American Control Electronics
Model Number
RGA403-10
Enclosure
Chassis
Maximum Current (ADC)
10
Input Voltage (VAC)
115, 230
Output Voltage (VDC)
0 - 90, 0 - 90, 0 - 180
Power Range HP
1/8 - 1, 1/8 - 1, 1/4 - 2

Access our platform to find more offers

Register now to explore 36 mln offers from verified suppliers worldwide.

  • Compare offers globally
  • Direct supplier contact
  • RFQs, Quotes, and Orders
  • BOM Search
Sign UpFree 14-day trial available

Documents

Data Sheet

Datasheet for American Control Electronics RGA403-10, including specifications and features.

Download Data Sheet
TracePartsTraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model
