Siemens 6SL3220-2YE34-0UP0

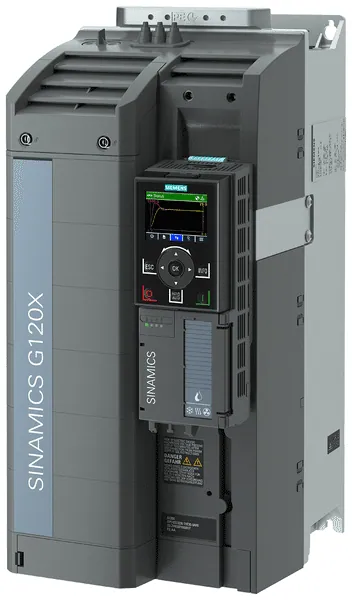

The SINAMICS G120X is designed to operate with a rated power of 30 kW, providing performance at 110% for 60 seconds and 100% for 240 seconds. This drive accepts an unfiltered input voltage range of 380-480 V AC with a frequency of 47-63 Hz. Operating within an ambient temperature range of -20 to +45 °C, the device features a size classification of FSD and carries an IP20 degree of protection suitable for UL open type installations.

With dimensions of 472 mm in height, 200 mm in width, and 239 mm in depth, the G120X integrates a basic operator panel but does not include input/output expansion. It is equipped with a PROFIBUS DP fieldbus for connectivity. The maximum output frequency achievable is 550 Hz, and it supports 6 digital inputs, 2 analog inputs, and 1 analog output. The nominal output current rating is 62 A, and the device can handle a maximum output of 30 kW under quadratic load conditions.

This drive is not intended for applications in industrial areas and does not provide integrated braking resistance. Additionally, it features a variety of hardware interfaces including one RS-232 and one RS-485 interface, facilitating communication capabilities, while other protocols such as MODBUS and TCP/IP are not supported. For spare parts, the preferred type is 6SL3220-3YE34-0UF0, and the corner type is 6SL3220-3YE36-0UP0.
