Eaton 000797

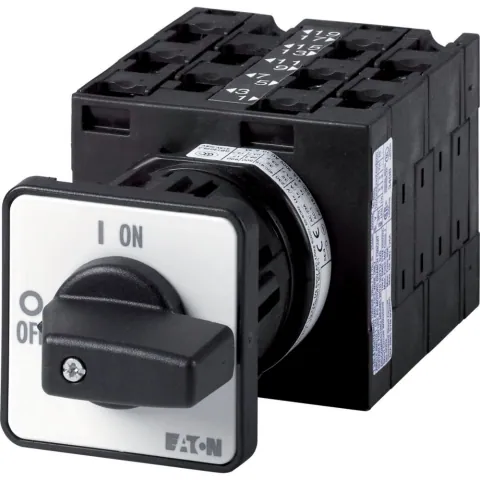

The Turnaround star-delta switch, identified by Designation Code: T3-5-15876/EZ, is engineered for a maximum current rating of 32 A. This device utilizes a center mounting method and incorporates five contact units configured with a switching angle of 60 °. It is designed for versatility, supporting operational configurations including D-Y-0-Y-D.

With a rated operational current (Ie) of 32 A at AC-3 for voltages of 400 V and lower, as well as 25.5 A at 690 V, this switch is suitable for various motor applications. The switch also features a rated short-time withstand current (Icw) of 650 A for one second, ensuring robust performance under transient conditions.

The enclosure, made from durable plastic, meets IP65 and NEMA 12 standards for protection against dust and moisture. Additionally, it supports an ambient operating temperature range from -25 °C to 50 °C, making it suitable for a variety of environments. The design accommodates connections via screw terminals, with a tightening torque of 17.7 lb-in, ensuring reliable electrical performance.

Mechanical durability is guaranteed with a lifespan of up to 500,000 operations, coupled with a shock resistance rating of 15 g as per IEC/EN 60068-2-27. This switch is also compliant with various international standards, including CE, UL, and IEC/EN certifications, affirming its quality and reliability.
