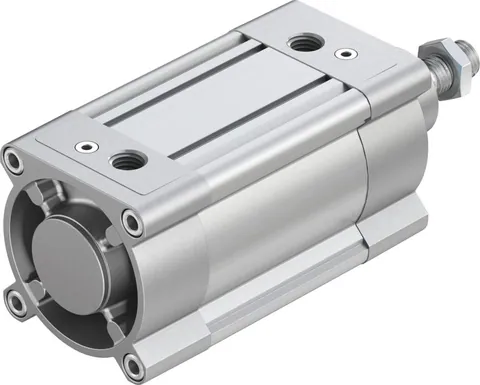

Festo DSBC-100-80-PPVA-N3

The ISO Cylinder DSBC-100-80-PPVA-N3 is a high-performance, double-acting pneumatic cylinder designed for industrial automation applications. With a piston diameter of 100 mm and a stroke length of 80 mm, this cylinder delivers a theoretical force of 4712 N at 6 bar when advancing. The adjustable pneumatic cushioning at both ends ensures smooth operation and precise control.

Conforming to ISO 15552 standards, the DSBC-100-80-PPVA-N3 is built with a robust structural design featuring a piston, piston rod, and profile barrel. The cylinder is compatible with proximity sensors for position sensing, enhancing its versatility in automated systems. It operates within a pressure range of 0.04 MPa to 1.2 MPa (0.4 bar to 12 bar) and can function with compressed air as per ISO 8573-1:2010 [7:4:4].

The cylinder is constructed from high-quality materials, including a smooth-anodized wrought aluminum alloy barrel, a high-alloy steel piston rod, and TPE-U(PU) seals. It is RoHS-compliant and offers moderate corrosion resistance (CRC class 2). The DSBC-100-80-PPVA-N3 is suitable for various mounting positions and can be installed with internal threads or accessories.

Ideal for applications requiring reliable and efficient pneumatic actuation, the DSBC-100-80-PPVA-N3 ensures optimal performance in demanding industrial environments.
