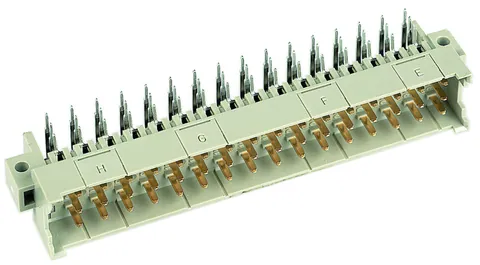

Angled Male Connector with Wave Soldering Termination

1 / 2
Harting 09061326931 Angled Male Connector with Wave Soldering Termination — Connectors & Plugs
Manufacturer catalogue image
Harting 09061326931 Angled Male Connector with Wave Soldering Termination — Connectors & Plugs
Harting 09061326931 Angled Male Connector with Wave Soldering Termination — Connectors & Plugs
Harting 09061326931 Angled Male Connector with Wave Soldering Termination — Connectors & Plugs

Product Description

The Angled Male Connector, designed for wave soldering termination, boasts a robust current rating of 6A. It features an impressive count of 32 contacts, ensuring efficient and reliable connections.

Constructed from copper alloy and enhanced with noble metal, this connector is built to withstand rigorous mating conditions. The shroud coding system, combined with hole coding, guarantees precise alignment during assembly. Furthermore, the D20 coding method ensures seamless integration with various systems.

This connector comes equipped with a fixing flange for secure PCB mounting. Its thermoplastic resin body, fortified with glass fibers, offers enhanced durability and resistance to environmental factors. The RAL 7032 (pebble grey) finish adds an aesthetic touch while maintaining functionality.
