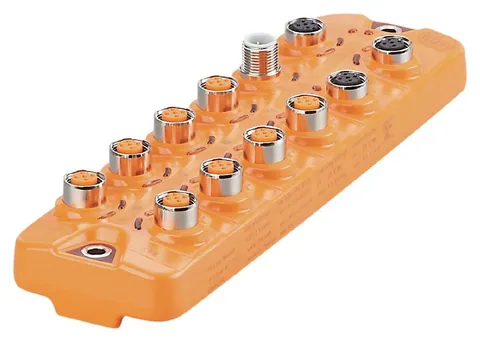

IFM AL1306

The IO-Link Master DL PN 8P IP67 serves to effectively separate automation networks from IT systems. It supports the reliable transmission of machine data, process parameters, and diagnostic information directly to the controller. This device is equipped with a PROFINET interface and a separate MQTT JSON interface to enhance its communication capabilities.

Designed for harsh industrial environments, the unit features a robust housing and supports the connection of up to eight IO-Link devices. Its operational specifications include an operating voltage range of 20 to 30 V DC, a current consumption of 300 to 3900 mA, and a maximum current load of 3.6 A. The device provides a total of 16 configurable digital inputs and outputs, with 16 digital inputs and 8 digital outputs available, ensuring flexibility in various applications.

Communication is facilitated through Ethernet and IO-Link with transmission standards of 10Base-T and 100Base-TX, allowing rates of up to 100 MBit/s. The unit is designed for a wide ambient temperature range of -25 to 60 °C and offers high protection ratings, including IP 67, making it suitable for demanding conditions.

Additional connectivity features include multiple M12 connectors for Ethernet and IO-Link, ensuring secure and efficient connections. The product complies with various EMC standards and has undergone rigorous testing for shock and vibration resistance, achieving an MTTF of 76 years.
