IFM CR1141

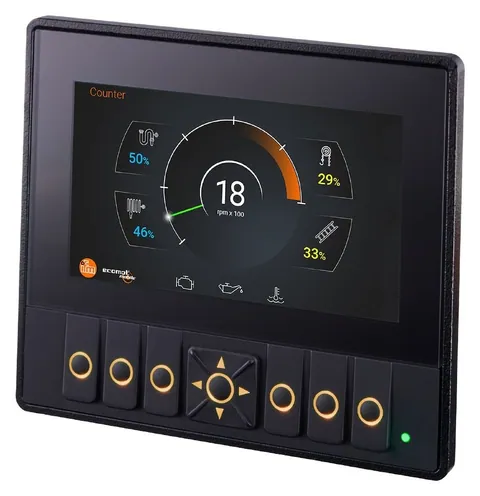

This programmable graphic display is tailored for mobile applications, operating effectively within industrial and wet environments. With a 64-bit ARM Dual Core processor running at 1.4 GHz, it supports a high-resolution 800 x 480 color display, which measures 4.3 inches with an adjustable brightness of up to 1000 cd/m².

The device comes equipped with six freely programmable backlit function keys and a central navigation key, enhancing user interaction. It operates on a voltage range of 8 to 32 V DC and has a current consumption of less than 333 mA at 24 V DC. Its power consumption is rated at 8 W.

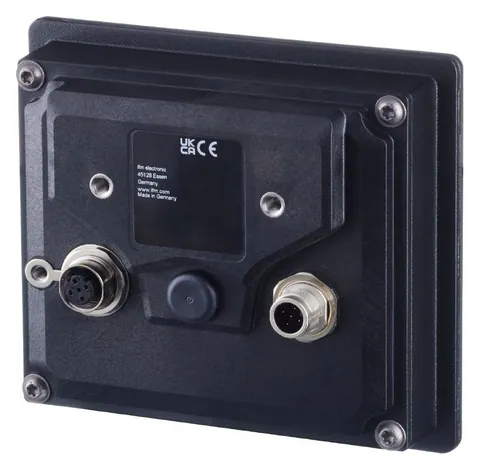

Communication is facilitated through a high-performance CAN interface and a USB interface, both allowing for flexible data transmission with a protocol supporting CANopen and SAE J1939. The display is compliant with various EMC standards, ensuring reliable operation in demanding conditions.

With a storage temperature range from -30 to 85 °C and an operational temperature range from -30 to 65 °C at altitudes up to 5000 m, this display is built to endure extreme environments. The device is protected against dust and water ingress with an IP 65/IP 67 rating and features materials that withstand various chemical exposures.

ecomatDisplay/4.3"/STD./U
