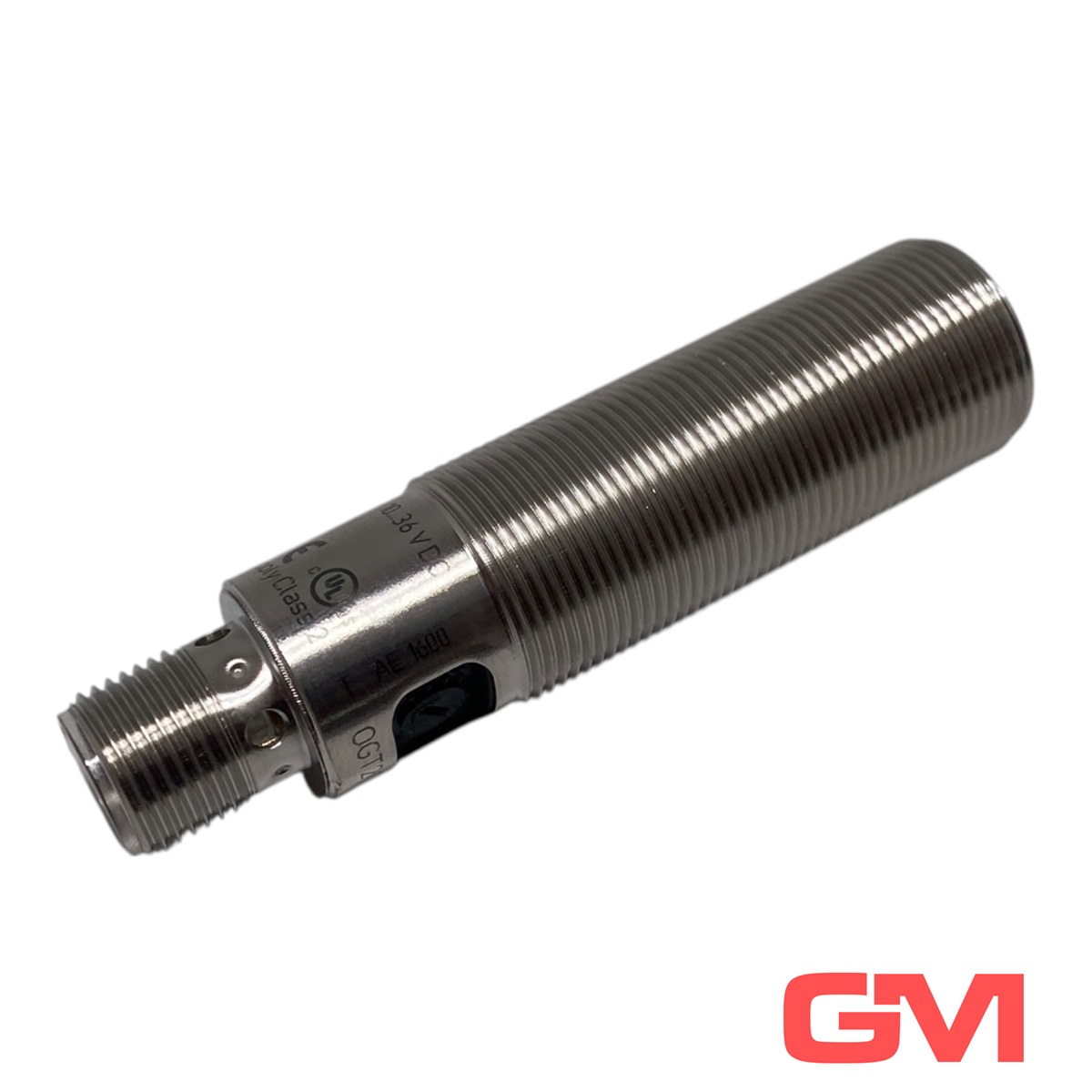

IFM OGT200

The Diffuse Reflection Sensor OGT200 is designed for use in harsh industrial environments, featuring a robust stainless steel housing that ensures durability and reliability. This sensor offers a very long detection range of up to 600 mm, making it ideal for various applications where precise object detection is crucial. The sensitivity can be intuitively adjusted via a potentiometer, allowing for quick and easy setup.

With its IP65 protection rating, the OGT200 is well-suited for demanding conditions, providing resistance against dust and water ingress. The sensor operates on a wide voltage range of 10 to 36 V DC and includes essential features such as reverse polarity protection, short-circuit protection, and overload protection, ensuring safe and reliable operation.

The OGT200 utilizes red light with a wavelength of 624 nm and offers a light-on mode output function. It is equipped with a PNP switching output with a maximum current rating of 200 mA and a switching frequency of 800 Hz. The sensor's detection zone ranges from 2 to 600 mm, with an adjustable setting range of 150 to 600 mm, and a maximum light spot diameter of 50 mm at the maximum range.

Designed for easy installation, the OGT200 comes with a threaded housing and includes two lock nuts for secure mounting. The sensor features a yellow LED indicator for switching status and an M12 connector for electrical connection. Compliant with EN 60947-5-2 standards, the OGT200 ensures high performance and reliability in...
