Murrelektronik 7000-12601-0000000

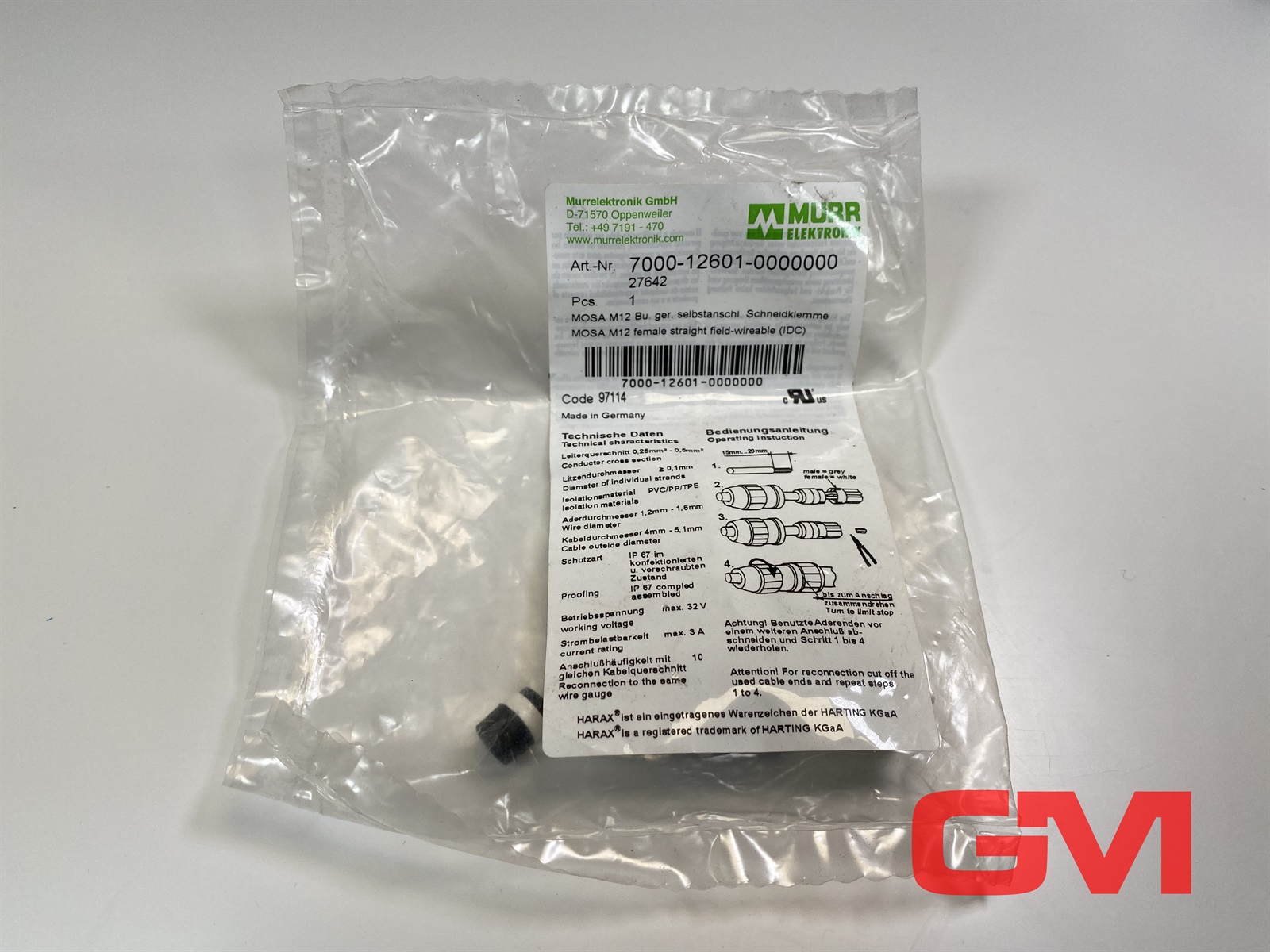

Murrelektronik M12 Female Connector 0° A-cod. IDC 4-pol.
1 / 1
Manufacturer catalogue image
Product Description
The Murrelektronik M12 Female Connector 0° A-cod. IDC 4-pol. is designed for robust and secure connections in industrial environments. Featuring IDC terminals, this connector supports a connection cross section of 0.25 to 0.5 mm², ensuring compatibility with various wire sizes. The connector is equipped with a straight M12 design and offers a high degree of protection with IP67 rating according to EN IEC 60529, making it suitable for use in harsh conditions.
Electrical Characteristics: The connector operates at a maximum voltage of 32 V AC/DC and supports a current of up to 4 A per contact, providing reliable electrical performance for demanding applications.
Mechanical Characteristics: The connector features a screw thread locking mechanism (M12×1 mm) with a recommended tightening torque of 0.6 Nm, ensuring secure and stable connections. The clamping range for the cable diameter is between 4 to 5.1 mm, and the wire insulation diameter ranges from 1.2 to 1.6 mm.
Environmental Characteristics: With an operating temperature range of -25°C to 85°C, the connector is designed to withstand extreme temperatures, making it ideal for various industrial applications.
Installation Notes: It is important to observe the permissible bending radii when laying cables to maintain the IP protection class. Additionally, strain relief measures such as cable ties should be used to protect the connectors from mechanical loads.
This connector is perfect for use in control cabinets, interfaces, and I/O...
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United Kingdom, member since 2021- Availability:
- 12 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Murrelektronik
- Operating voltage AC max.
- 32 V
- Operating voltage DC max.
- 32 V
- Current operating per contact max.
- 4 A
- Connection cross section min.
- 0.25 mm²
- Connection cross section max.
- 0.5 mm²
- Tightening torque
- 0.6 Nm
